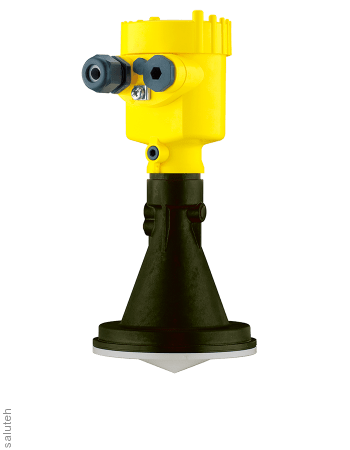

Urovnemer VEGAPULS 67 PS67.XXBXDHAMAX

The VEGAPULS 67 level gauge is designed for use on bulk materials

products under simple measurement conditions in small silos and

containers. VEGAPULS 67 is a budget solution, thanks to its versatile and

simple installation options. Sealed antenna system

ensures long-term operation without the need for cleaning, even when

accumulation of heavy sediments on its surface.

Features

• Non-contact measurement
• Easy installation
• No wear and no maintenance required
• High measurement accuracy
• SIL qualification (optional up to SIL2)

Technical data

Measuring range:up to 15 m

Joining:Mounting bracket, cap flange from DN80 or 3"

Process temperature:-40 ... +80 °C

Operating pressure:-1 ... +2 bar (-100 ... +200 kPa)

Measurement accuracy:+/- 2 mm
