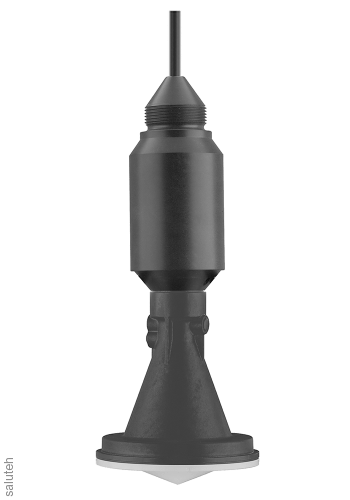

VEGAPULS WL 61 PSWL61.XXBXXHKAX level gauge

The VEGAPULS WL 61 radar level gauge is designed for use in water treatment plants, pumping stations, storm drain chambers, for measuring flow and level in open reservoirs.

VEGAPULS WL61 is an economical solution thanks to its simple and versatile mounting options. The IP 68 climatic design ensures continuous operation without the need for maintenance.

Features

• Non-contact measurement
• High operational availability, as there is no wear and no maintenance required
• Accurate measurement results regardless of operating conditions

Technical data

• Measuring range: up to 35 m (depends on the type of antenna system and the properties of the measured product)
• Joining:Mounting bracket, cap flange (from DN80 or 3")
• Process temperature:-40 ... +80 °C
• Working pressure: -1 ... +2 bar (-100 ... +200 kPa)
• Measurement accuracy:+/- 2 mm
