Level gauge SN61.XXAGHKMXX

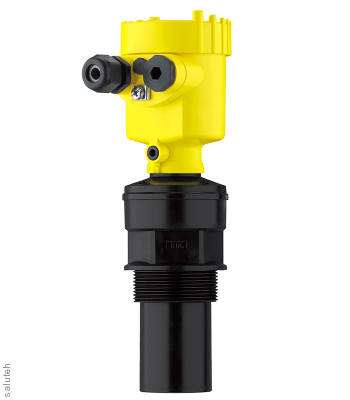

SN61.XXAGHKMXX VEGASON 61 Level Gauge

The VEGASON 61 level gauge is designed to measure the level of liquids in storage tanks and open wells, to measure flow in open trays, as well as to measure the level of bulk products in small containers.

Features

• Non-contact measurement
• Independence from product properties
• Initial setup without a product
• Integrated temperature sensor for sound propagation time correction

Technical data

• Measuring range:Liquid: 0.25 ... 5 m, bulk product: 0.25 ... 2 m
• Joining:Thread G1½, 1½ NPT of PVDF
• Process temperature:-40 ... +80 °C
• Process pressure:-0.2... +2 bar (-20 ... +200 kPa)
• Measurement accuracy:±10 mm
• SIL Qualification:additionally, up to SIL2
