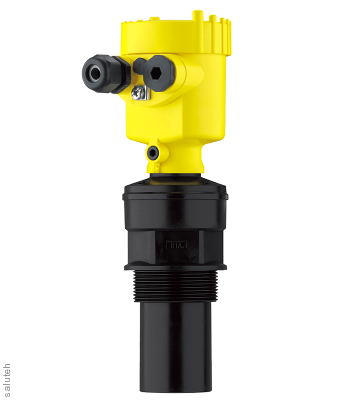

VEGASON 62 SN62.CXAGHKMXX level gauge

VEGASON 62 SN62.CXAGHKMXX level gauge

The VEGASON 62 level gauge is designed to measure the level of liquids in storage tanks and open wells, as well as to measure the level of bulk products in small containers.

Features

• Non-contact measurement
• Independence from product properties
• Initial setup without a product
• Integrated temperature sensor for sound propagation time correction

Technical data

• Measuring range:Liquid: 0.4 ... 8 m, bulk product: 0.4 ... 3.5 m
• Joining:Thread G2, 2 NPT from PVDF
• Process temperature:-40 ... +80 °C
• Process pressure:-0.2... +2 bar (-20 ... +200 kPa)
• Measurement accuracy:±10 mm
• SIL Qualification:additionally, up to SIL2
