Main application areas
- Water supply
- Equipment for buildings
- Rainwater disposal

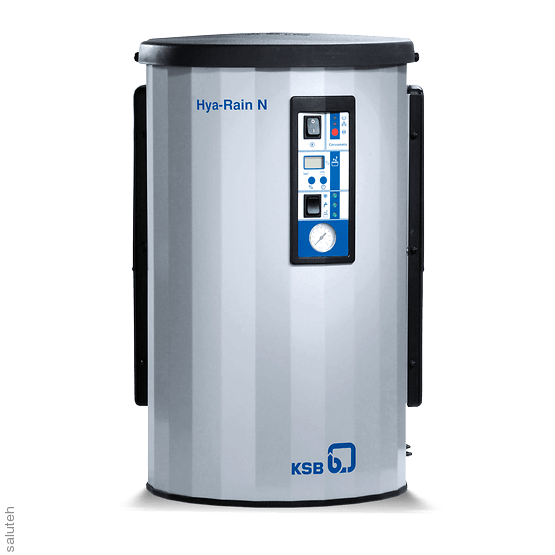

Ready-to-connect compact installation for the disposal of rainwater and industrial water, as well as installations for watering and sprinkling.
Overview of technical data
| Q (50Hz) | 0.0 – 4.0 (m³/h) |
| H (50Hz) | 15.0 – 43.0 (m) |
| Type of bearing | ball bearing |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| 1. type of impeller | radial |
| Other types of impeller | closed |
| Impeller material (according to E standard | NORYL |
| Type of installation | block |
| Type of coupling | directly |
| Type of lubricant | lubrication of the pumped medium |
| Pressure housing material (according to the standard | JL 1040, ANTIKORR.-COAT |
| Max. permissible liquid temperature | 35 (°C) |
| The position of the nozzle | variable |
| Max. number of pumps | 1 |
| Maximum operating pressure | PN 6 |
| Installation of the unit | "dry" installation |
| The material of the stage body (according to the E standard | JL 1040, ANTIKORR.-COAT |
| The material of the suction body (according to the standard | JL 1040, ANTIKORR.-COAT |
| Suction characteristics | self-priming |
| Acceptable for drinking water | yes |
| Type of connection | carving |
| Type of stage housing | stage body with guide device |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | JL1040, JL1040, CORR.-COATED, JL1040, ANTICORR.-COAT |
| eClass | 36410100, 36410000, 36410101 |
| Max. inlet pressure | 1 (bar) |
| Installation position | vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | Water supply, Engineering equipment of buildings |
| Housing material | stainless steel |
| Max. working pressure from the pressure sides | 6 (bar) |
| Max. drive power | 0,80 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 2800 (1/min) |
| Connection type | indirect |
Features
Brand
KSB
