Main application areas
- Pressure increase, fire extinguishing installations

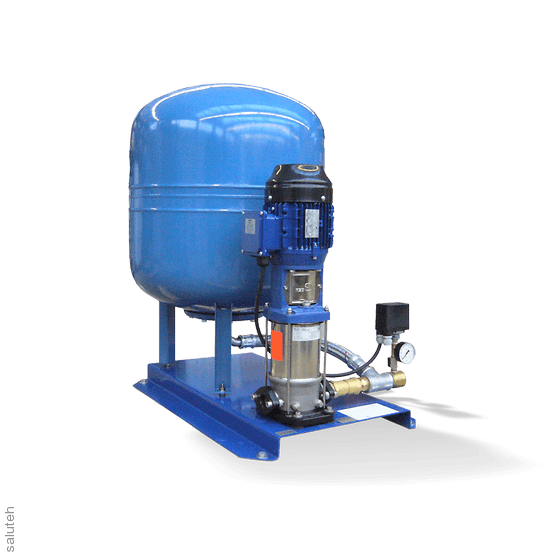

An automatic pressure boosting device, in a compact version, with a Movitec pump and a 200-liter membrane type storage tank. The pressure switch allows the automatic operation of the pump. Applications: water supply, pressure boosting, for private homes or small residential buildings, agricultural business, manufacturing enterprises, irrigation systems, washing plants.
Overview of technical data
| Q (50Hz) | 0.0 – 12.0 (m³/h) |
| H (50Hz) | 9.0 – 100.0 (m) |
| Type of bearing | slide underpin |
| Drive motor frequency | 50 Hz |
| Type of drive | electric motor |
| Drive motor voltage | low voltage |
| 1. type of impeller | closed /radial |
| Other types of impeller | closed /radial |
| Impeller material (according to E standard | 1.4301 |
| Type of installation | on a common frame |
| Type of coupling | without |
| Type of lubricant | lubrication of the pumped medium |
| Pressure housing material (according to the standard | 1.4301 |
| Max. permissible liquid temperature | 70 (°C) |
| The position of the nozzle | execution of the "in-line" type |
| Max. number of pumps | 1 |
| Maximum operating pressure | PN 10 |
| Installation of the unit | "dry" installation |
| The material of the stage body (according to the E standard | 1.4301 |
| The material of the suction body (according to the standard | 1.4301 |
| Suction characteristics | non-self-priming |
| Acceptable for drinking water | yes |
| Type of connection | the flange |
| Type of stage housing | stage body with guide device |
| Type of suction housing | 00 |
| UNSPSC classification | 4015150300 |
| Housing material (according to EN standard) | 1.4301 |
| eClass | 36410101 |
| Max. inlet pressure | 7 (bar) |
| Min. inlet pressure | 0,50- (bar) |
| Installation position | vertical |
| Type of shaft seal | mechanical seal |
| Main application areas | Water supply, Engineering equipment of buildings |
| Housing material | stainless steel |
| Max. working pressure from the pressure sides | 10 (bar) |
| Max. working pressure from the suction side | 10 (bar) |
| Max. drive power | 3 (kW) |
| Type of installation | stationary |
| Max. rotation speed | 2900 (1/min) |
| Connection type | indirect and direct |
