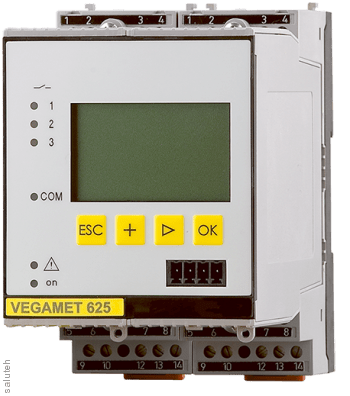

VEGAMET 625 MET625.CXX Signal Generation Device

VEGAMET 625 Universal Signal Generation Device

It is designed for various control and management tasks, including

measurement of the level, height of the liquid column and the interfacial level, measurement

differential pressure and process pressure, state registration and

inventory Management (Vendor Managed Inventory), as well as remote

survey of measurement data. A variety of customization functions allow you to

adapt the device to individual application conditions.

Features

• 2 x Sensor input 4 ... 20 mA/HART with sensor power supply
• Three relay outputs, three adjustable current outputs
• LCD display with graphic function, backlit
• Integrated Web server and measured value memory
• Transmission of measured values and e-mail messages
• It is used for data exchange with WEB-VV

Technical data

Entrance:2 x HART Sensor input

Exit:3 x 0/4 ... 20 mA, 3 x Level Relay, 1 x Fault Relay, 1 x Ethernet (optional), 1 x RS232 (optional)

Supply voltage:20 ... 253 V AC, 50/60 Hz, 20 ... 253 V DC
