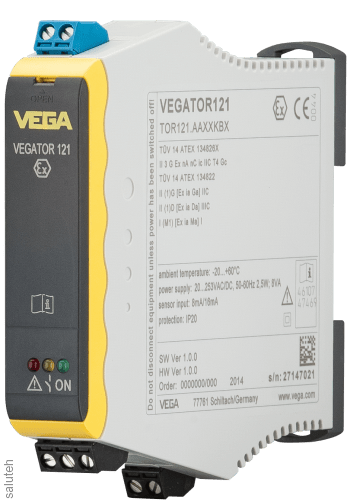

VEGATOR 121 TOR121.AUXXKBX Signal Generation device

The VEGATOR 121 signal generation device is designed for

applications with EGASWING, VEGAVIB and limit level alarms

VEGAWAVE with electronics in the "2-wire" version. 8/16 mA“, to perform

simple control and management tasks. A typical application is protection against

overflow or dry running. Additionally, there is a signal output

malfunctions.

Features

• Monitoring of short circuit and rupture of the measuring line and sensor malfunctions
• The button for functional verification by SIL and WHG
• Easy mounting on a carrier rail, removable coded terminals

Technical data

Entrance:1 x Sensor input 2-wire. 8/16 mA /1 x Relay Output (SPDT) /Additional 1 x Fault Signal Relay Output (SPDT)

Operating voltage:20... 253 V AC/DC, 50/60 Hz

Mounting:Load-bearing rail 35 x 7.5 nach EN 50022

SIL qualification : additional, up to SIL2
