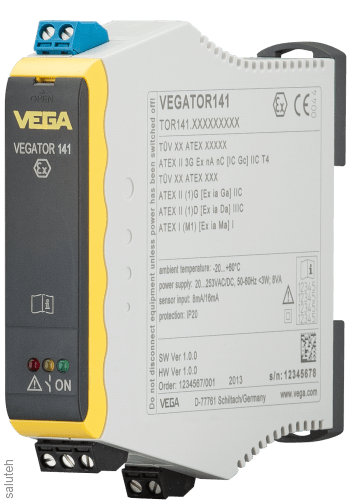

VEGATOR 141 TOR141 Signal generation device

The VEGATOR 141 signal generation device is designed for

level alarms with continuously measuring sensors with output 4 ... 20

mA. The device processes the measured values from the sensor and outputs

the switching signal depends on the set trigger threshold.

The device is used to perform simple control tasks and

management. Typical application is protection against overflow or dry

stroke, as well as level height control. Additionally, there is an exit

the fault signal.

Features

• Easy to set the switching point by means of a potentiometer
• Indication of the switching status by means of an LED
• Easy mounting on a carrier rail, removable coded terminals

Technical data

Entrance:1 x Sensor input 4 ... 20 mA active (Ex and non-Ex) /alternatively 1 x Sensor input 4 ... 20 mA passive (non-Ex)

Exit:1 x Relay Output (SPDT) /Additional 1 x
