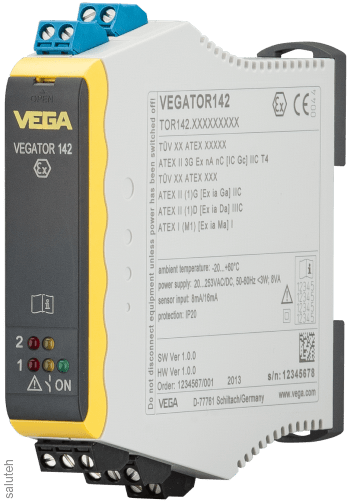

VEGATOR 142 Signal generation device

The VEGATOR 142 signal generation device is designed for

level alarms with continuously measuring sensors with output 4 ... 20

mA. The device processes the measured values from the sensor and

outputs a switching signal depending on the set threshold

triggers. The device is used to perform simple tasks

control and management. A typical application is overflow protection or

dry running, as well as level height control.

Features

• Easy to set the switching point by means of a potentiometer
• Indication of the switching status by means of an LED
• Easy mounting on a carrier rail, removable coded terminals

Technical data

Entrance:2 x Sensor input 4 ... 20 mA active (Ex and non-Ex) /alternatively 2 x Sensor input 4 ... 20 mA passive (non-Ex)

Exit:1 x Relay Output (SPDT)

Integration time:installed

Working voltage
