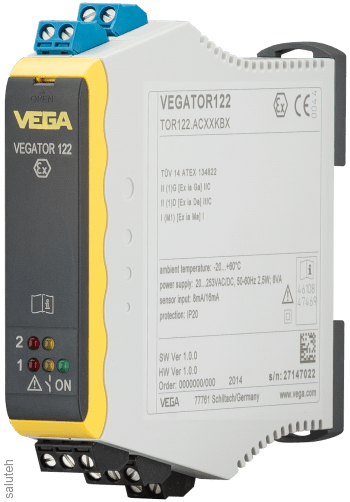

The VEGATOR 122 signal generation device is designed for
applications with VEGASWING, VEGAVIB and limit level alarms
VEGAWAVE with electronics in the "2-wire" version. 8/16 mA“, to perform
simple control and management tasks. A typical application is protection against
overflow or dry running.
Features
- Monitoring of short circuit and rupture of the measuring line and sensor malfunctions
- The button for functional verification by SIL and WHG
- Easy mounting on a carrier rail, removable coded terminals
Technical data
Entrance:2 x Sensor input 2-wire. 8/16 mA /2 x Relay Output (SPDT)
Operating voltage:20... 253 V AC/DC, 50/60 Hz
Mounting:Load-bearing rail 35 x 7.5 nach EN 50022
SIL qualification: additional, up to SIL2
Features
Power Supply, In
- 12V DC
Output signal, mA
4-20мА, HART
Degree of IP protection
IP65/67
Brand
Vega
