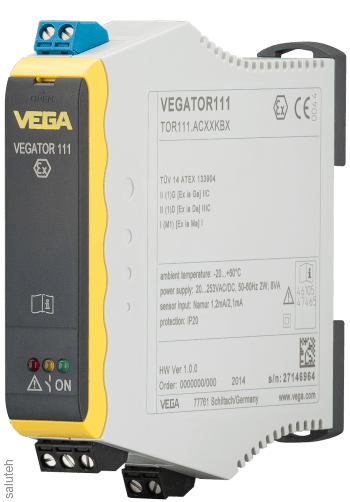

VEGATOR 111 Signal generation device

The VEGATOR 111 signal generation device is designed for

applications with VEGASWING, VEGAVIB and limit level alarms

VEGAWAVE with NAMUR electronics design (IEC60947-5-6), for

performing simple control and management tasks. Typical Application -

protection against overflow or dry running. Additionally, there is an exit

the fault signal .

Features

• Monitoring of short circuit and rupture of the measuring line and sensor malfunctions
• The button for functional verification by SIL and WHG
• Easy mounting on a carrier rail, removable coded terminals

Technical data

Entrance:1 x NAMUR sensor input (IEC 60947-5-6) /1 x Relay Output (SPDT) /Additional 1 x Fault Signal Relay output (SPDT)

Operating voltage:20... 253 V AC/DC, 50/60 Hz

Mounting:Load-bearing rail 35 x 7.5 nach EN 50022

SIL qualification: additional, up to SIL2
