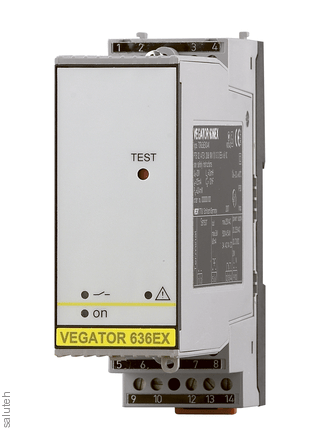

The VEGATOR 636 signal generation device is designed for level signaling and pump control together with conductive probes EL 1 ... EL 8.
The principle of operation
The VEGATOR 636 signal generation device provides power to the connected sensors and simultaneously generates measurement signals. The device supplies a weak alternating current through a signal cable to the measuring point. The use of alternating current prevents the electrolytic destruction of the probe and product rods. The cable is connected to the measuring point or to a metal container and a measuring probe.
Advantages
- Two independent limit level alarms or one Min./Max control. (control of two points)
- Functional monitoring and fault signal LED
- Adjustable sensitivity (max. 200kohm)
- Mounting on a carrier rail 35 x 7.5 according to EN
Features
Power Supply, In
- 12V DC
Output signal, mA
4-20мА, HART
Degree of IP protection
IP65/67
Brand
Vega
