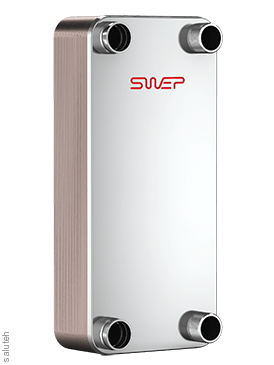

Brazed heat exchanger B120TNh60/1P-SC-S 4x2"
The B120T is specially designed for use in thermal engineering and industrial areas where high equipment requirements are imposed, as a rule, in water-to-water devices and oil coolers.
The product contributed to the rapid transition from traditional plate heat exchangers with sealing gaskets and shell-and-tube solutions to PPTO.
It is widely used as a condenser in the field of air conditioning and cooling.
Brazed plate heat Exchanger SWEP B120THx60/1P-SC-S 4x2"(54) (13975-060*1) - this is a single-pass, copper-soldered plate heat exchanger manufactured by SWEP, the connection is external. thread 4 x 2", 60 plates, pressure class - S- standard, plate size - 525 x 243 mm, produced at the SWEP factory in Sweden or Slovakia. It is widely used in processes where heat exchange is required - heating, cooling, etc.
|
Features |
The power is calculated |
|
Model /Series |
B120T |
|
Number of plates |
60 |
|
Number of moves |
one-way |
|
Connection |
outside. thread 4 x 2" |
|
Plate material |
stainless steel |
|
Seal material |
copper solder |
|
Operating pressure, bar |
27 |
|
Pressure class according to EN 13345 |
S- standard (up to 27 bar) |
|
Length (mm) |
147 |
|
Width (mm) |
243 |
|
Height (mm) |
525 |
|
Empty weight (kg) |
33 |
|
Weight (kg) |
33 |
|
Manufacturer |
SWEP |
|
Country of origin |
Sweden |
|
Warranty period (years) |
1 year |
