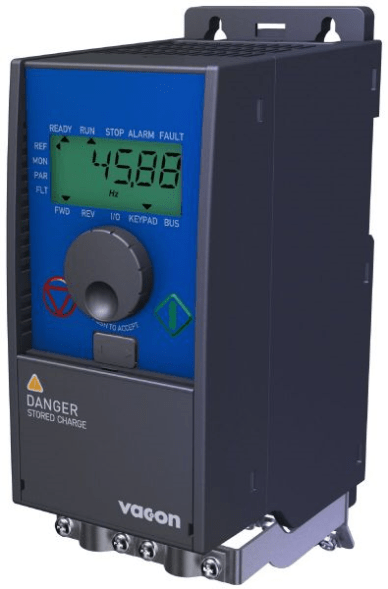

An exceptionally compact frequency converter Vacon 10 The new series of industrial applications allows you to solve a wide range of tasks.
The small size and the possibility of installing converter blocks in a row allow the Vacon 10 frequency converter to be used in cases where space saving is of paramount importance.
Application:
Application:
- Conveyors
- Pumps, fans (PI-regulator)
- Extruders, augers
- Woodworking machines
Brief technical specifications:
- Power:
- 1~220 V – 0.25...2.2 kW
- 3~380V – 0.37...5.5 kW
- Overload capacity 150%
- Output frequency 0...320 Hz
Management method:
- scalar (U/f)
- vector with an open loop (without sensor)
- Built-in three-phase AC choke
- Built-in EMC filter
- Lacquered boards
- Built-in brake interrupter (IF 3~380V with a power of more than 1.5 kW)
- The ability to program and copy parameters without applying mains voltage
- Motor protection against short circuit, overload, underloading, jamming
- The possibility of starting with the determination of the direction and speed of rotation of the engine
- Direct current braking
- Number of analog/digital inputs/outputs: 2AI/6DI 1AO/2R
- All inputs/outputs are freely programmable
- RS-485 Modbus RTU interface as standard
- The degree of protection of the housing is IP20, IP21
