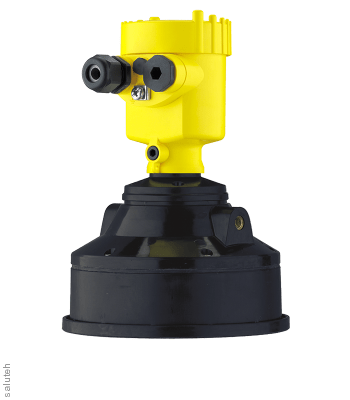

VEGASON 63 SN63.XXABHAMAX level gauge

The VEGASON 63 level gauge is designed to measure the level of liquids and

bulk products in any industry. The level gauge is applicable to

liquids in medium-sized storage tanks and open wells.

When used on bulk products, the maximum measurement range is

it depends on the dust formation and consistency of the product.

Features

• Non-contact measurement
• Independence from product properties
• Initial setup without a product
• Integrated temperature sensor for sound propagation time correction

Technical data

Measuring range:on liquids: 0.6 ... 15 m, on bulk products: 0.6 ... 7 m

Joining:cap flange DN 100, mounting bracket

Process temperature:-40 ... +80 °C

Process pressure:-0.2 ...+1 bar (-20 ... +100 kPa)

Measurement accuracy:±10 mm

SIL Qualification:additionally, up to SIL2
