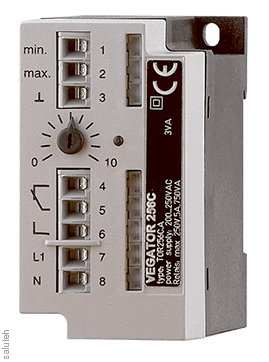

The VEGATOR 256C signal generation device is designed for
level alarm and pump control together with conductive probes
THE 1ST... THE 8TH.
Features
- Compact power supply and signal generation unit of the conductive probe
- Easy to set the switching point by means of a potentiometer
- Easy mounting on a carrier rail
Technical data
Entrance:1 x Limit level alarm or 1 x Pump control
Output :1 x Relay Output
Sensitivity threshold :installed within 1 ... 200 kOhm
Switching hysteresis:approx. 20%
Operating voltage :20... 253 V AC/DC, 50/60 Hz
Mounting:Load-bearing rail 35 x 7.5 nach EN 50022
SIL qualification : additional, up to SIL2
Features
Power Supply, In
- 12V DC
Output signal, mA
4-20мА, HART
Degree of IP protection
IP65/67
Brand
Vega
