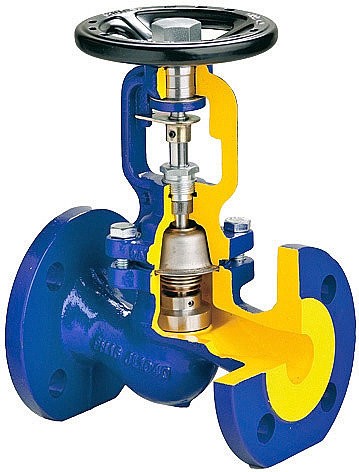

234С-ХХХ-D-01 Вентиль запорный сильфонный Zetkama zBEL PN25 GGG40.3 /1.4021 /1.4021, Тмакс=+350оС

234C-D-01 Shut-off bellows valve Zetkama zBEL PN25 GGG40.3 /1.4021 /1.4021 , Tmax=+350oC steering wheel, flange/flange

Figure 630

• Material:
• Grey cast iron
• Spheroidal cast iron
• Steel
• acid-resistant steel

Nominal pressure: 16, 40, 63, 100 bar

Diameter: 20-400 mm

Operating temperature limit: -196...+400°C

Specifications:

• High level of tightness (class - A according to EN - 12266 - 1 standard)
• Small construction length
• It is environmentally safe
• Assembled according to EN - 12266 - 1
• Flanges according to EN 1092-2
• Construction length EN 558 row 8

Application:
Industry, shipbuilding industry, heating, petrochemicals, refrigeration, steam condensate systems.

Management:

• Automatic with free stock
• Manual
• Electric drive
