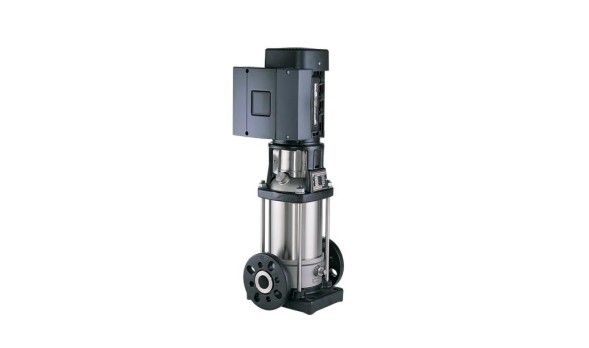

Vertical centrifugal pump 96514544 CRNE15-05 A-P-G-E-HQQE 3x400 60 HZ

96514544 Centrifugal Vertical Pump CRNE15-05 A-P-G-E-HQQE 3x400 60 HZ

Vertical multistage centrifugal pump with normal suction of the "in-line" type for mounting on a base plate.

Pump Characteristics:

• The impellers, intermediate chambers and external parts of the housing are made of stainless steel DIN W.-Nr.DIN W.-Nr. 1.4401.
• The head and lower support part of the pump are made of Stainless steel DIN W.-Nr.DIN W.-Nr. 1.4408.
• The installation length of the seal is in accordance with DIN 24960.
• The torque is transmitted through a detachable coupling.
• Connection to the pipeline using flanges/couplings.

Pump with IEC-flanged three-phase MGE motor with frequency control and PI-regulator, built-in
