VFL 12

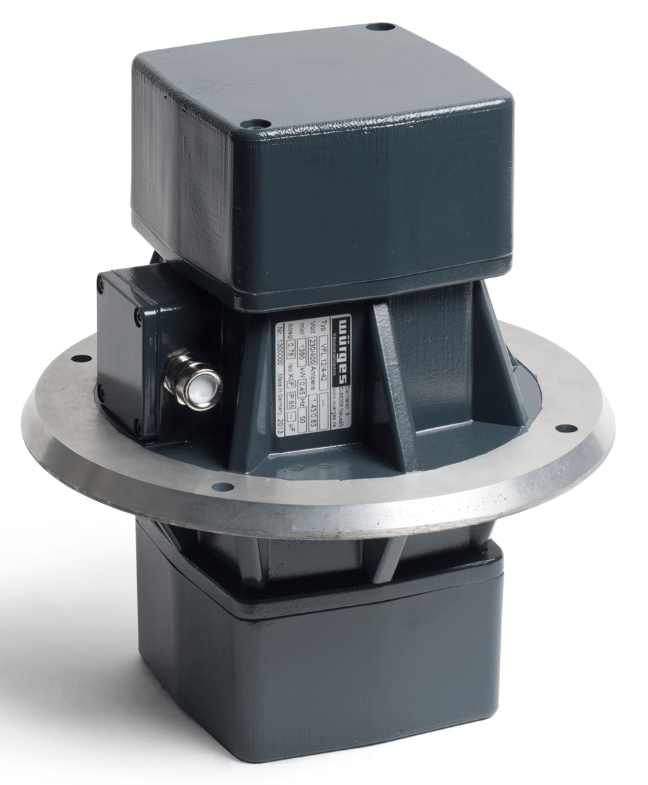

Three-phase vibration motor for flange mounting
Three-phase vibration motor
The devices are used as a central drive in drum screens, vibration equipment, etc.
Double-sided centrifugal loads can be displaced by 90° or 180° relative to each other. As a result, rotational and rocking movements are formed.
The sturdy body is made of high-strength, improved aluminum, cast in coquille. The lubrication of specially selected bearings will last for the entire life of the engine. There are several levels of adjustment of the centrifugal force using unbalanced weights. The vibrator can be used in continuous operation mode with full adjustment of the unbalance, taking into account the permissible current consumption.
Standard voltage: 230/400 V · 50 Hz. It is possible to supply motors designed for special voltage parameters.
Degree of protection IP 65 Heat resistance class F
Overview of engine types
|
№
|
Type
|
Synch. often. rotation.
|
Centrifugal force
|
Working moment
|
Adjustment of the centrifugal force
|
Standard voltage
|
Rated current
|
Power
|
Choice
|
|
|
|
rpm
|
N
|
cm kg
|
Number of disks per store.
|
50 Hz /V
|
But
|
P1, W
|
|
|
1
|
VFL 12/2
|
3000
|
6000
|
12
|
Level 8
|
3 ~ 230/400
|
2,16/1,25
|
650
|
|
|
2
|
VFL 12/4-18
|
1500
|
2200
|
18
|
Level 12
|
3 ~ 230/400
|
1,43/0,83
|
450
|
|
|
3
|
VFL 12/4-30
|
1500
|
3750
|
30
|
Level 20
|
3 ~ 230/400
|
1,43/0,83
|
450
|
|
|
4
|
VFL 12/4-42
|
1500
|
5250
|
42
|
Level 15
|
3 ~ 230/400
|
1,43/0,83
|
450
|
|
|
5
|
VFL 12/4-60
|
1500
|
7750
|
60
|
stepless 2
|
3 ~ 230/400
|
1,43/0,83
|
450
|
|
|
6
|
VFL 12/6-42
|
1000
|
2230
|
42
|
Level 15
|
3 ~ 230/400
|
1,12/0,65
|
300
|
|
|
7
|
VFL 12/6-60
|
1000
|
3440
|
60
|
stepless 2
|
3 ~ 230/400
|
1,12/0,65
|
300
|
|
Size Chart
|
Type
|
Mounting dimensions
|
|
Base dimensions (mm)
|
|
Dimensions (mm)
|
|
Weight
|
|||||||
|
|
a
|
b
|
Шs
|
|
c
|
e
|
f
|
|
h
|
g
|
p
|
k
|
|
kg
|
|
VFL 12/2
|
260
|
290
|
13
|
|
15
|
225
|
135
|
|
154
|
76,5
|
150
|
303
|
|
17,2
|
|
VFL 12/4-18
|
260
|
290
|
13
|
|
15
|
225
|
135
|
|
154
|
76,5
|
150
|
303
|
|
17,7
|
|
VFL 12/4-30
|
260
|
290
|
13
|
|
15
|
225
|
135
|
|
177,5
|
100,5
|
150
|
350
|
|
21,0
|
|
VFL 12/*-42
|
260
|
290
|
13
|
|
15
|
222
|
158
|
|
167,5
|
90,5
|
150
|
330
|
|
22,9
|
|
VFL 12/*-60
|
260
|
290
|
13
|
|
15
|
222
|
158
|
|
167,5
|
122
|
150
|
393
|
|
30,9
|
