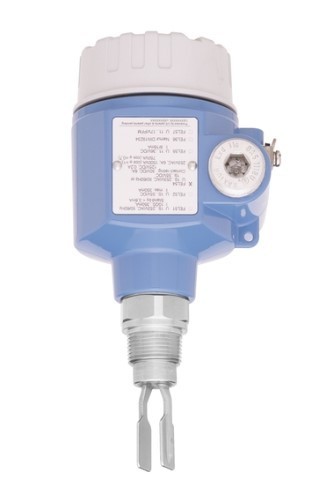

Vibration level sensor FTL50-GGQ2AA6G5A

Vibration Shutter Speed Sensor FTL50-1T249/0 Liquiphant M FTL50 FTL50-BGQ2AA4G5A+I7

Compact liquid limit sensor suitable for any industry

Liquiphant FTL50 is a limit level sensor for use in hazardous areas, which has all international certificates. Suitable for all industries. The FTL50 sensor provides SIL2/SIL3 functional safety. Additional protection guarantees the highest degree of safety and availability of the device. Reliable measurement results that are not affected by: changing properties of the medium, flow velocity, turbulence, the presence of bubbles, foam, vibration or sticking

Advantages

• Possibility of use in SIL2/SIL3 GROOVE systems in accordance with GOST R IEC 61508 (IEC 61508) and GOST R IEC 61511 (IEC 61511-1)
•  International Explosion Protection and Overflow Protection Certificates (WHG)
• No calibration required, easy commissioning
• No moving mechanical parts: wear is eliminated, maintenance is not required, and a long service life is ensured.Monitoring of the vibrating screen for damage: reliable operation
• Additional measures to protect the environment
• A wide range of standardized connections for all applications
• Stainless steel housing (316L) and vibrating screen made of high corrosion resistance material (Alloy)

Scope of application

• Limit level sensor for all liquids.
• Process connections: threads, flanges and hygienic connections (Tri-Clamp)
• Temperature: -50 ... +150°C
• Pressure: -1 ... +64 bar
• Sensor Material: 316L, Alloy
• International explosion protection certificates, overflow protection WHG, SIL, marine certificates

Measuring principle: Vibrational density measurement

Scope of application : Liquiphant M for density measurement with density calculator FML621

• Temperature and pressure measurement
• Modular housing
• A wide range of process connections
• Food/Communication
• Converter Power supply (MUS)
• The ambient temperature is -50...70°C  -50...60°C for explosive applications
• Operating temperature 0...80°C (accuracy of error data) -50...0°C /80...150°C (with reduced technical data)
• Working pressure abs. 0...25 bar >25...64 bar (with reduced technical data)
• Bowed parts 316L/C4
• Sensor length Compact design: 50.5 mm
• Output signals are pulsed
• Certificates/permits ATEX, FM, CSA C/US, IEC Ex, TIIS, INMETRO, NEPSI
• Assignments Commissioning using ReadWin2000
• Components of the Density Calculator FML621
• Other SIL2/SIL3 certificates and standards
