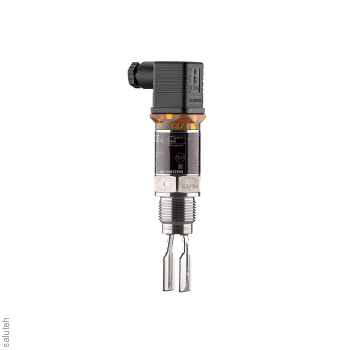

SG51.XXSGBTPV level gauge

VEGASWING 51 is designed to signal the limit level of liquids.

The vibration alarm registers the limit level with millimeter accuracy. The sensor can be mounted on tanks and pipelines and can be used to signal the maximum and minimum levels, protect against overflow or dry running, and protect the pump.

Features

• It does not require configuration during commissioning
• The switching point is independent of the product
• Very high reproducibility
• It does not wear out and does not require maintenance
• Small mounting dimensions

Technical data

• Material:    316L
• Joining:    thread from G½, ½ NPT, hygienic types
• Process temperature:    -40 ... +150 °C
• Process pressure:    -1 ... +64 bar (-100 ... +6400 kPa)
