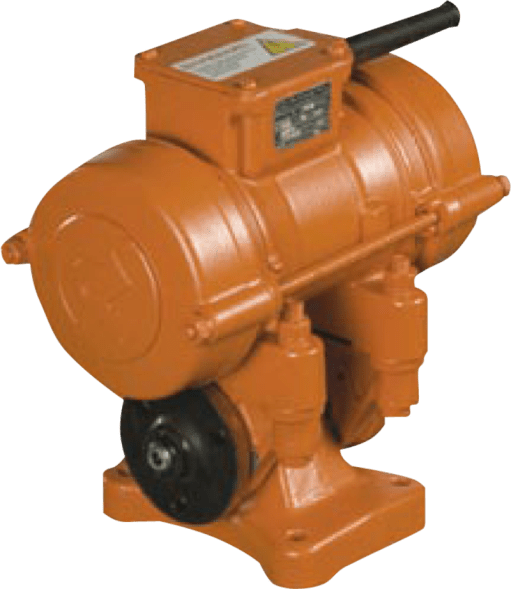

Pad vibrator O.N. IV-101E 220 (1 phase)/50

Scope of application

The main purpose of the IV-101E pad vibrator is:

• transportation, loading and unloading of various bulk materials;
• sealing of bulk materials;
• household, road, energy, industrial construction;
• granulation and dehydration of feed products;
• mechanical engineering.

The IV-101E site vibrator is powered by a single-phase power supply, the voltage of which can be 220V.

The main technical characteristics of the IV-101E:

1. The power of the vibrator ranges from 0.25 to 0.5 kW;
2. The rotation speed of the IV 101E shaft is 3000 rpm;
3. The operating voltage of the supply network is 220V;
4. The standard frequency of the IV 101E network - 50 Hz;
5. The indicator of the forcing force is 2.5 to 5.0 kN;
6. Weight - 17 kilograms;
7. Working life – no more than 700 hours
