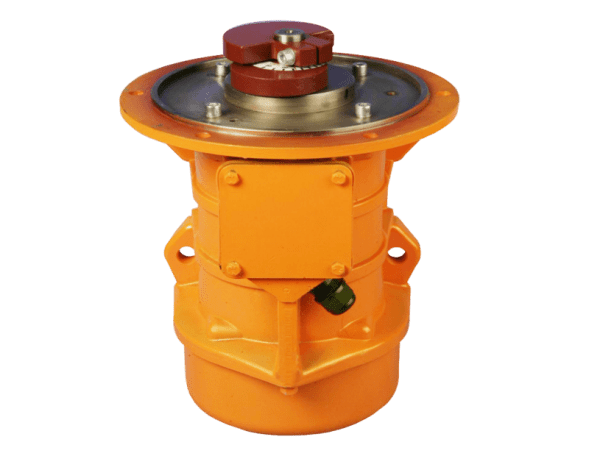

The flanged vibrator IV F-20-50 is a two-pole device with a three-phase voltage. The main field of application is compaction of soils and concrete mixtures, transportation, unloading, sieving of bulk materials. The vibrator is used on vibrating tables, vibrating plates, vibrating tables and other vibrating equipment.
The principle of operation
The general purpose vibrator IV F-20-50 is an asynchronous electric motor operating from a voltage of 380 V. The speed of the device is 3000 revolutions per minute. It is possible to connect the vibrator to the supply network through a step-down transformer TSZI-2,5. The unit can be used in an area where there is a high probability of electric shock (conductive dust, humid environment).
The working life has been increased to 5000 hours, the bearing spikes have been strengthened, the bearing load capacity has been increased, and a double installation has been carried out
