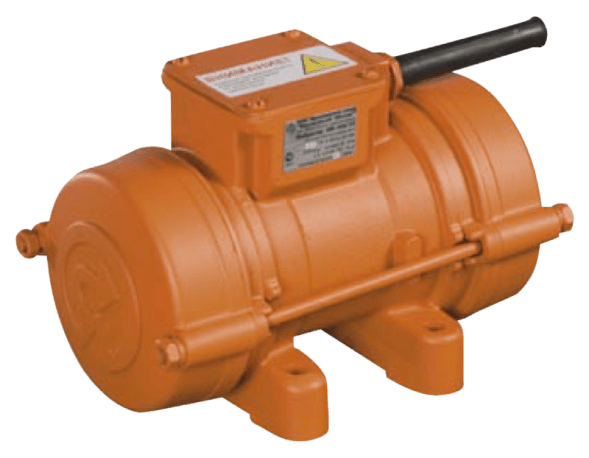

DC EV Pad Vibrator-401-01 24 (post. current)

The EV-401 DC vibrator is widely used in the field of unloading raw or frozen material. The device is specially designed for continuous operation in environments with high humidity, pollution and dust. The car vibrator is popular for its ease of use, simple design, reliability, safety and high performance.

The principle of operation

The vibrator is a three-phase asynchronous motor with a short-circuited rotor. Adjustable unbalances are installed at the ends of the shaft, which create a driving force during their rotation. To be able to control the power of the driving force, the debalances at both ends of the EV-401 shaft are double. They are adjusted by changing the angle between the running and static element. The forced force is 2.5 - 5.0 kN.
