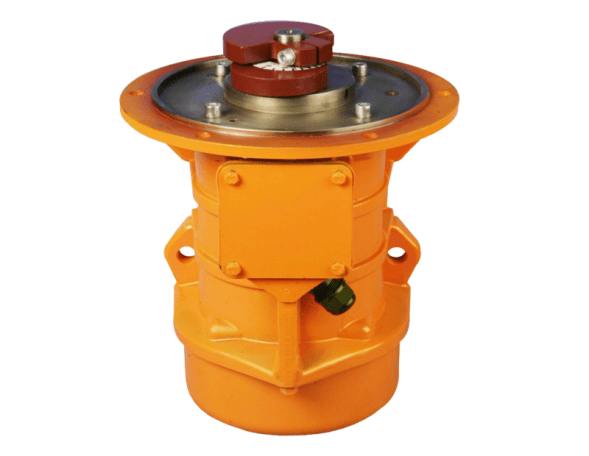

Flanged vibrators are designed for use in vibration installations in which vibration is required parallel to the mounting plane of the vibrator.
The use of flanged vibrators is effective in such installations as vibrating screens, vibrating convectors. The sieving process proceeds faster and more evenly if the sieving surface of the vibrating screen does not oscillate in the vertical plane (as in the case of using an ordinary surface vibrator), but in the horizontal (when using a flange vibrator).
| Model | Rated power consumption kW | Synchronous frequency, min -1 | Driving force, kN | Static moment, kg.cm | Voltage, V | Current frequency, Hz | Operating time to failure, hours | Weight, kg |
| 4-pole vibrators | ||||||||
| IVF-2,5-25 | 0,27 | 1500 | 1,25...2,5 | 5,1…10,2 | 42; 380 3f | 50 | 5000 | 17,6 |
| IVF-3-25 | 0,53 | 1500 | 1,4...3,0 | 5,7…11,4 | 42; 380 3f | 50 | 5000 | 30,5 |
| IVF-0.6-25 | 0,53 | 1500 | 3,1...6,2 | 12,5...25,0 | 42; 380 3f | 50 | 5000 | 33 |
| IVF-12-25 | 1,07 | 1500 | 6,10...12,25 | 25,0…50,0 | 42; 380 3f | 50 | 5000 | 65,5 |
| 2-pole vibrators | ||||||||
| IVF-05-50 | 0,5 | 3000 | 2,5...5,0 | 2,55...5,1 | 42; 220; 380 3f | 50 | 5000 | 17,6 |
| IVF-11-50 | 0,97 | 3000 | 5,6...11.3 | 5,7...11,4 | 42; 220; 380 3f | 50 | 5000 | 30,5 |
| IVF-20-50 | 2,05 | 3000 | 9,9...20,0 | 10,0...20,0 | 42; 220; 380 3f | 50 | 5000 | 53,6 |
| Type of vibrator | L | D | d | d1 | d2 | N | R | h | l1 | l2 |
| IVF–3-25,IVF–11-50 | 357 | 279 | 14 | 254 | 229 | 4 | 80 | 10 | 5 | 58,5 |
| IVF–06-25 | 362 | 92 | 63,5 | |||||||
| IVF–05-50 | 268 | 260 | 15 | 230 | 160 | 5 | 65 | 12 | 42 | |
| IVF-2,5-25 | 290 | 71 | 48 | |||||||
| IVF–12-25 | 490 | 350 | 21 | 305 | 270 | 6 | 90 | 20 | 109 | |
| IVF–20-50 | 395 | 65 |
Features
Centrifugal force, kN
4,00
Power, kW:
0,55
Rotation speed, rpm
1500
Brand
Красный Маяк
