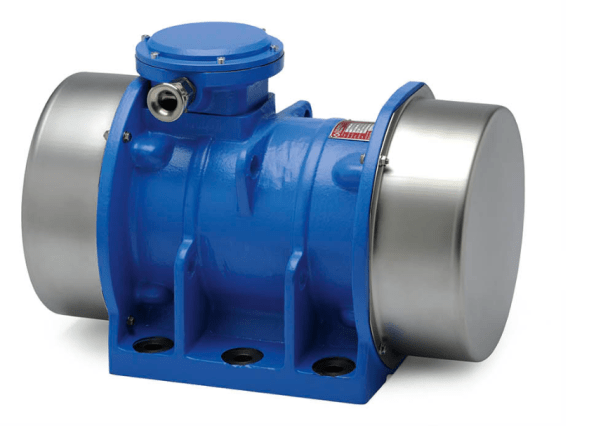

VIMARC® Explosion-proof vibration motors Type DP
VIMARC® vibration motors have been built with great success for over 50 years. Built-in cylindrical roller bearings with high load capacity and increased bearing clearance are lubricated for life with a special lubricant in our factory.
Since 2009, an extensive program of VIMARC® engines has been produced both at the Haan plant in Germany and at the Houston (Texas) plant in the USA. Full service for these engines, such as technical advice, spare parts supply, repair services, are available at both production facilities.
General technical conditions
Power supply:Voltages from 380 V to 415 V at 50 Hz and
from 460 V to 480 V at 60 Hz.
Protection:IP 65 according to DIN 40050
Thermal class:F (155 ° C) according to DIN EN 60034-1
Tropical isolation:standard
Permissible ambient temperature:-20 to +40 ° C
Operating mode:Continuous operation (S1) and intermittent operation at 100% centrifugal force.
Hood:The hoods are made of stainless steel up to the size of the FDP 700 engine. All larger engines through the FDP 700 are equipped with deep sheet metal hoods. The special shape and silicone seal provide perfect protection against dust and water ingress.
montage:It can be mounted in any position without restrictions.
Coating color:The standard in RAL 5015. Other colors are available on request.
Type of code:
The type code is read as follows:
First letter=size
The second and third letters=explosion-proof Exd housing.
Numerical cushion=operating torque in kgf
(Operating torque=2 x static torque)
This is followed by a hyphen and then the pole number. If, finally, V, it is a 50 Hz motor, otherwise it is a 60 Hz motor.
The engines are supplied without a cable gland, but they can be purchased additionally.
