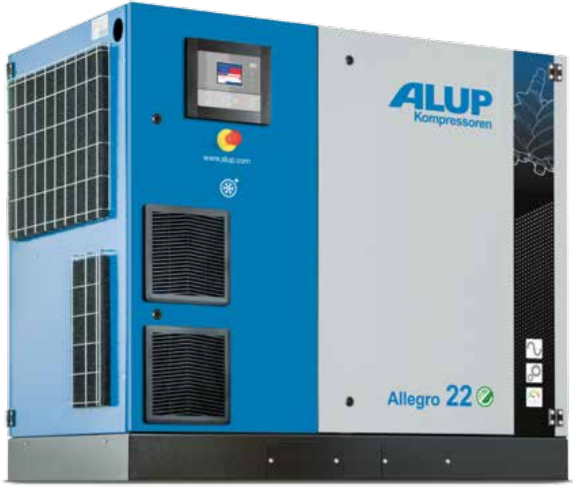

Screw compressors Alup Largo/Allegro 11-22 E

High-efficiency screw compressors of the series Go away (with constant rotation speed) and Allegro (with frequency-controlled speed) in versions of sizes 11-22 E. Due to the features of their design and improved functionality, they have outstanding performance characteristics and are ready to ensure maximum efficiency over a long service life. A reliable and productive combination of screw compression, gearbox (gear) and frequency control. The high efficiency of this equipment gives a large volume of compressed air output at lower energy consumption. For even greater resource savings, an additional system for energy recovery of the hydraulic cooling circuit, a simple maintenance-free mechanical unit, can also be integrated.

Comfortable placement, low noise level for installation in close proximity to workplaces. The control is carried out using a frequency converter with an Air Control 5.0 interface (as standard with Largo) or Air Control 5.1 (as standard with Allegro, as an option for Largo) with advanced features and a visual graphical interface. Easy maintenance with easy access to all items, all consumables under one removable panel. Powerful cooling system to maintain operating temperatures even in harsh conditions, efficient filtration processes at the inlet and at the air supply. For ease of transportation, holes are provided for fixing the compressor with forklifts.

The following versions of the Largo/Allegro 11-22 E compressors are available for order:

• floor-standing design with mounting on the frame, complete with and without dehumidifier
• installation on a receiver with a capacity of 500 liters complete with a dehumidifier

Technical characteristics of Largo/Allegro 11-22 E screw compressors

• Maximum operating pressure: 7.5 - 13 bar /10 - 13 bar;
• Efficiency: 81 - 243 m3/hour /81 - 265 m3/hour;
• Noise level: 66 - 69 dBA;
• Capacity of the air receiver: 500 liters;
• Engine power 11 - 22 kW;
• Degree of protection: IP54 (cabinet), IP55 (motor).
• Engine insulation class: F.

Parameters of standard sizes of Alup Largo 11-22 E compressors

Parameters of standard sizes of Alup Allegro 11-22 E compressors

You can buy Alup Largo/Allegro 11-22 E screw compressors, find out the price and more information about the products by contacting our specialists.
