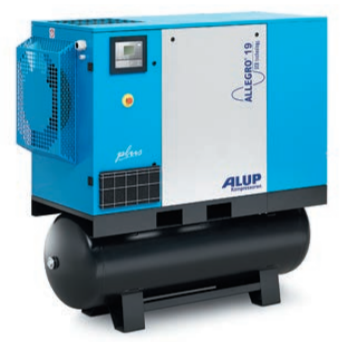

High-efficiency screw compressors of the series Go away (with constant rotation speed) and Allegro (with frequency-controlled speed) in versions of dimensions 11 - 36. The design features and improved functionality ensure outstanding application results in a wide range of industries, reliability and maximum performance over a long service life. This line offers a wide range of configurations, there are models with direct and gear drive. The high efficiency of this equipment gives a large volume of compressed air output at lower energy consumption. For even greater resource savings, an additional system for energy recovery of the hydraulic cooling circuit, a simple maintenance-free mechanical unit, can also be integrated.
Comfortable placement, low noise level for installation in close proximity to workplaces. The control is carried out using a frequency converter with an Air Control 5.0 interface (as standard with Largo) or Air Control 5.1 (as standard with Allegro, as an option for Largo) with advanced features and a visual graphical display. Easy maintenance with easy access to all elements, for these purposes, floor models have hinged doors, removable panels when mounted on the receiver.
A powerful heat removal system is built in to maintain operating temperatures even in harsh conditions, effective filtration of air flows at the inlet and during supply. In cold climates, an optional heater may be useful. For ease of transportation, holes are provided for fixing the compressor with forklifts.
The following versions of the Largo/Allegro 11 - 36 compressors are available for order:
- floor-standing design with mounting on the frame, complete with and without dehumidifier
- installation on a receiver with a capacity of 500 liters complete with a dehumidifier
Technical characteristics of Largo/Allegro 11-36 screw compressors
- Maximum operating pressure: 7.5 - 13 bar /10 - 13 bar;
- Efficiency: 1.52 - 6.12 m3/min /0.53 - 6.33 m3/min;
- Noise level: 61 - 69 dBA;
- Capacity of the air receiver: 500 liters;
- Engine power 11 - 37 kW;
- Degree of protection: IP54 (cabinet), IP55 (motor).
- Engine insulation class: F.
Parameters of standard sizes of Alup Largo 11-36 compressors
Type compressor | Max. pressure, bar | Efficiency, m3/min | Power motor, kW |
Length 11 | 7,5 | 1,93 | 11 |
8,5 | 1,83 | ||
10 | 1,52 | ||
13 | 1,20 | ||
Long 15 | 7,5 | 2,70 | 15 |
8,5 | 2,48 | ||
10 | 2,20 | ||
13 | 1,82 | ||
Long 19 | 7,5 | 3,28 | 18,5 |
8,5 | 3,17 | ||
10 | 2,70 | ||
13 | 2,32 | ||
Long 22 | 7,5 | 3,78 | 22 |
8,5 | 3,67 | ||
10 | 3,23 | ||
13 | 2,82 | ||
Long 23 | 7,5 | 3,95 | 22 |
8 | 3,71 | ||
10 | 3,38 | ||
13 | 2,92 | ||
Long 26 | 7,5 | 4,73 | 26 |
8 | 4,38 | ||
10 | 4,08 | ||
13 | 3,60 | ||
Long 30 | 7,5 | 5,63 | 30 |
8 | 5,10 | ||
10 | 4,73 | ||
13 | 4,08 | ||
Long 36 | 7,5 | 6,12 | 37 |
8 | 5,70 | ||
10 | 5,10 | ||
13 | 4,43 |
Parameters of standard sizes of Alup Allegro 11-36 compressors
Compressor Type | Max. pressure, bar | Production, m3/min | Power motor, kW |
Allegro 15 | 10 | 0,72 - 3,15 | 15 |
13 | 0,53 - 2,23 | ||
Allegro 19 | 10 | 0,60 - 3,33 | 18,5 |
13 | 0,57 - 2,53 | ||
Allegro 22 | 10 | 0,72 - 3,92 | 22 |
13 | 0,52 - 3,05 | ||
Allegro 23 | 13 | 0,78 - 4,25 | 22 |
Allegro 26 | 13 | 0,77 - 4,83 | 26 |
Allegro 30 | 13 | 1,02 - 5,80 | 30 |
Allegro 36 | 13 | 1,02 - 6,33 | 37 |
You can buy Alup Largo/Allegro 11-36 screw compressors, find out the price and more information about the products by contacting our specialists.
