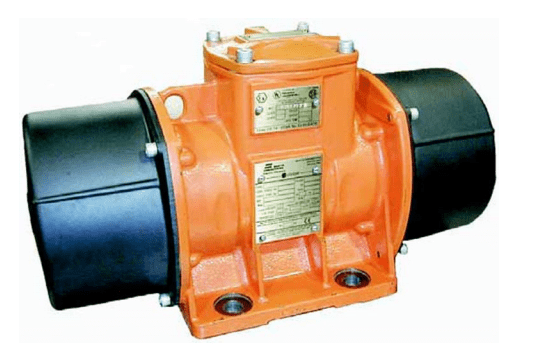

VMX 15/3810-G/D Pad Vibrator vzr. 1500ob/min 400V 37.7kN 2.27kW 133kg
- Power supply: three-phase voltage from 24V to 690V (600V limit for UL and CSA), 50 Hz or 60 Hz, single-phase or 100-130V 60 Hz or 200 - 240 V at 50 Hz.
- Polarity: 2, 4, 6 and 8 poles.
- Maintenance: Continuous maintenance (S1) at maximum centrifugal force and electric power.
- Centrifugal force: extended range up to 22,400 kgf. (220 kN)
- Insulation class: class F (155 ° C).
- Electric motor: three-phase asynchronous.
The most common series on-site electric vibrators, which has found application in various machines and mechanisms, from ordinary vibrating screens and vibroconveyors to food equipment and sports simulators.This series of industrial vibrator motors is certified for potentially explosive environments containing combustible dust (ATEX, IECEx, GOST). Series up to 300 kN.
Operating mode: constant (S1) at maximum value of centrifugal force and electric power.
Insulation class: F (155°C) or H (180).
Insulation class: F (155°C) or H (180).
- CDX, CDX...-G/D, IMX...-G/D, VMX...-G/D (group II, category 2, gas (G) And the dust (D) – protection method EEx d IIB 120°C)
- CDX...-G, IMX...-G, VMX...-G (group II, category 2, gas (G) – protection method EEx d IIB 160°C),
meet the requirements of the following EU Directives and their subsequent amendments
Catalogs:
Catalogs:
Features
Centrifugal force, kN
37,7
Power, kW:
2,27
Rotation speed, rpm
1500
Power Supply, In
~ 400V AC
Weight, kg
133
Brand
Italvibras
