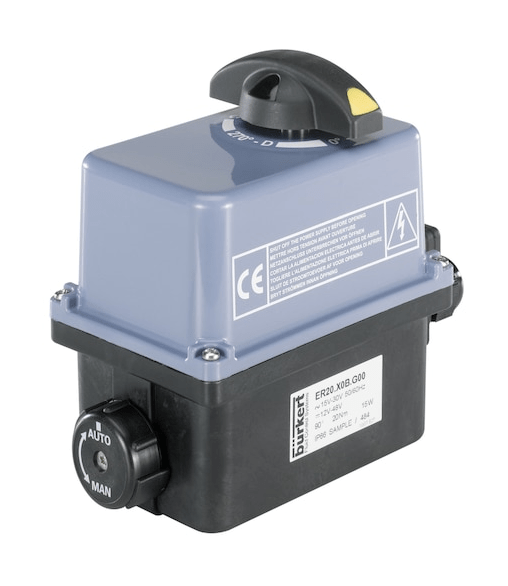

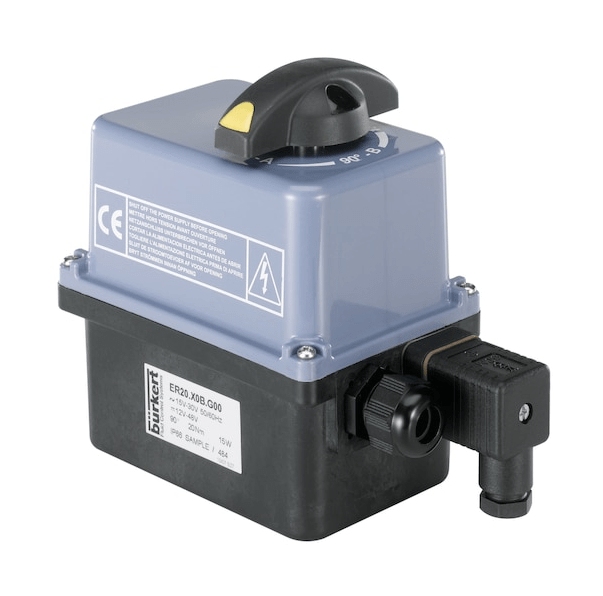

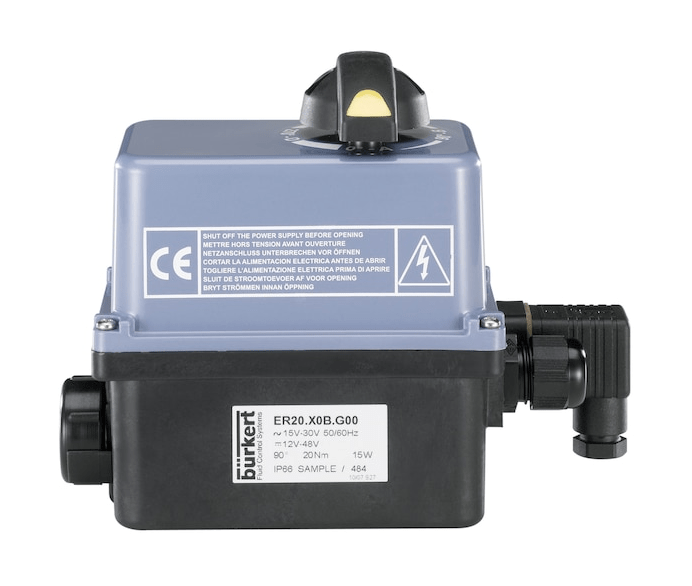

The rotary electric actuator for shut-off and control valves, Type 3003 is a compact and powerful drive system with a long service life. The materials and components of the drive ensure maintenance-free operation even in an aggressive environment and guarantee a low thermal load. The modular design allows for numerous options, including additional limit switches, potentiometers, and emergency power options that can be used to expand the base device. Both input signals (e.g. 4-20 mA, 0-20 mA, 0-10 V) and output signals can be programmed in the drives. The standard set of equipment includes a heating resistor and a torque limiter. The housing is made of fire-resistant material according to UL 94 V0 classification
Features
Rated torque, Nm
35 N m
Degree of IP protection
IP66
Temperature Tmax, °C
0 до +55°C
Weight, kg
2,49 kg
Brand
Burkert
