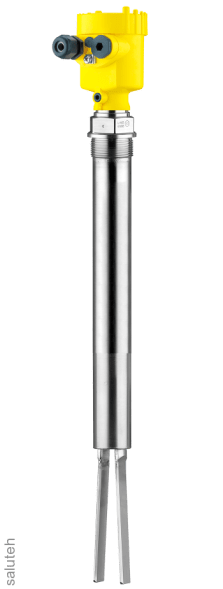

Сигнализатор уровня VEGAWAVE 63 WE63.XXAGDRKMX L=500mm

WE63.XXAGDRKMX L=500mm VEGAWAVE 63 Level Indicator

For powdery and fine-grained bulk products. The sensor provides reliable and accurate signaling of the minimum or maximum level.

The vibrating fork is ideal for use on adhesive and abrasive products, as well as on bulk products with low density. The position of the switching point is set by the length of the extension tube.

Features

• Quick and easy installation without configuration with the product
• Reliable function, independent of the switching point from the product
• Low cost of operation and maintenance, thanks to the robust construction

Technical data

• Version:extension tube up to 6 m
• Connection:thread G1½, 1½ NPT flanges from DN 50, 2"
• Process temperature: -50... +250 °C
• Process pressure:-1 ... +25 bar (-100... +2500 kPa)
• SIL Qualification:additionally, up to SIL2
