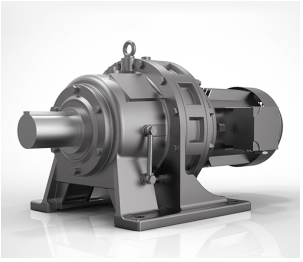

Cycloidal gear motor XWD5 i=23 7.5kw

XWD5-23-7.5kw Cycloidal Gear Motor

Cycloidal gear motors XWD are high quality of manufacture and ease of operation.

Модели: XWD1 XWD2 XWD3 XWD4 XWD5 XWD6 XWD7 XWD8 XWD9 XWD10 XWD11 XWD12

The coefficient of speeds: 9   11   17   23   29   35   43   59   71   87

The cycloid gear (planetary gear) differs from others in that 67% of the tooth area of the cycloid discs is in contact at any given time. This allows the cycloid transmission to withstand the highest impact loads, which can be up to 500% of the rated torque of the gearbox.

Any other type of transmission has an overlap coefficient ten times less, as a result of which manufacturers of general industrial drives focus on an overload capacity of no more than 200% of the rated torque.

Features of the cycloidal gearbox

• High extraction coefficient and high level of efficiency
• If the cycloidal gearbox is equipped with a single-stage transmission, the exhaust coefficient can reach up to 1:87 and the efficiency will be more than 90%. If this transmission equipment is equipped with multi-stage control, the exhaust coefficient will be higher.
• Compact structure and small size.
• The cycloidal gearbox is equipped with the principle of planetary control, the input and output shafts are located on the same axis, so the gearbox has a small size.
• Smooth running and low noise.
• Reliable performance and long service life.
• The main components of the cycloidal gearbox are made of high-carbon chrome-plated steel material and these products have a high level of strength. Moreover, the friction of the second kind of some gear contacts makes the gearbox durable.
• The cycloidal gearbox has a rational design and is easy to maintain.
