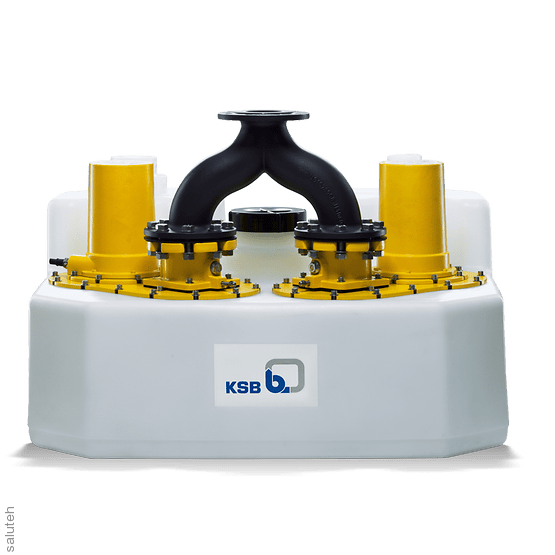

A flooded installation for lifting faeces Compacta F

Brand:KSB
For comparison
To favorites
Vendor code:Compacta F
A flooded installation for lifting faeces Compacta F
Brand
Pre-order
$0
11
Delivery across Russia
On-line payment on the website
Discount system
Purchase returns
Description
Features
Reviews

Main application areas

  • Polluted water
  • Equipment for buildings
  • Waste water
  • Installations for lifting drains
  • Installations for lifting polluted waters
  • water disposal

Overview of technical data

Q (50Hz) 0.0 – 140.0 (m³/h)
H (50Hz) 0.0 – 24.5 (m)
Type of bearing ball bearing
Drive motor frequency 50 Hz
Type of drive electric motor
Drive motor voltage low voltage
Impeller material (according to E standard CHROM-NICKEL-STAHL, PP
Type of lubricant grease
Max. permissible liquid temperature 40 (°C)
Max. number of pumps 2
Maximum operating pressure 1
Installation of the unit "dry" installations, flooded
Suction characteristics non-self-priming
Type of connection the flange
UNSPSC classification 4015150300
Housing material (according to EN standard) JL 104, PE, PP
eClass 00000000, 36410000, 36410100, 36410107
Installation position horizontal
Main application areas Water supply, wastewater, Building engineering equipment
Housing material artificial material
Max. drive power 11,80 (kW)
Type of installation stationary
Max. rotation speed 2800 (1/min)
