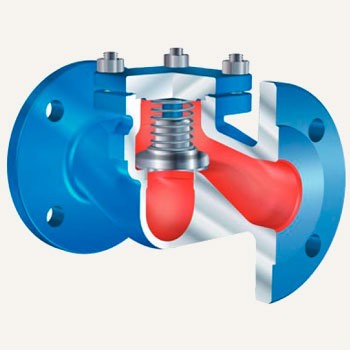

ARI-CHECKO-V check valves are used to work with working media - water and other liquids (both aggressive and neutral), gaseous substances, steam (including water).
PN16, body material - grey cast iron GG-25, cast steel, stainless steel, flange connection.
Specifications
- Nominal pressure: 16/25/40 and PN63/100/160 (up to DN50)
- Housing material: grey cast iron, ductile iron, cast steel, stainless steel, heat resistant steel
- Temperature: -10 to +150 C
- Standard sizes (DN): DN15-DN500; DN15-100 for flanged connection
- Connections: flanged, flanged, welded
Application: Chemical, pharmaceutical, petrochemical industry, as well as metallurgical, pulp and paper, energy, food, and some other industries.
Features: The opening pressure is from 0.1bar. A special version can be ordered. Namely, a model with a high opening pressure. The body is made of cast iron (malleable and grey) and steel (cast and stainless). Operating temperature conditions – from -10oC to +150oC. The internal parts are made of stainless steel. A special design is possible – for seawater.
