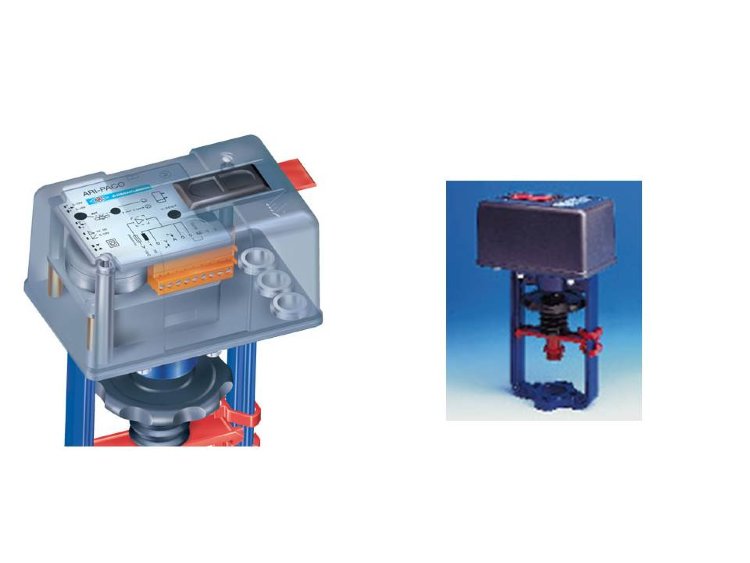

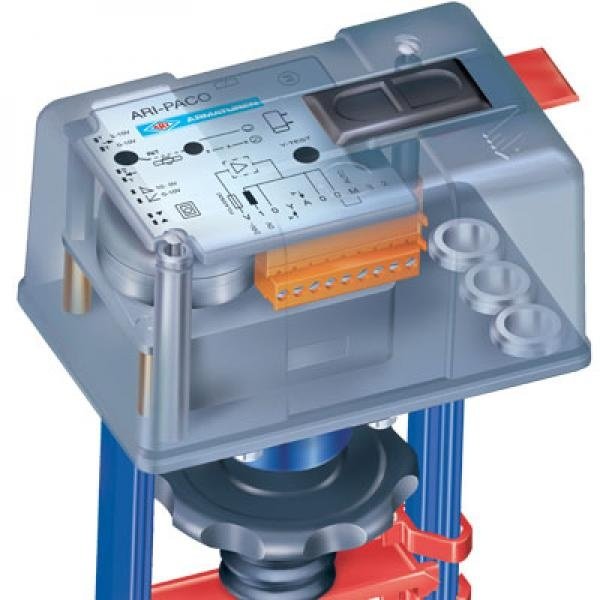

ARI-PACO linear electric drive

Technical specifications:

• Voltage - 230V, 50/60Hz
• The permutation force is 0.85 kN
• The response rate is 0.11 mm/sec.
• Stroke - 20 mm
• Temperature (permissible temperature) - 0 °C to50 °C

Applications: heating installations, air conditioning installations, etc.

Features:

• There is a manual emergency control.
• The protection class of the electric drive is IP 54.
• There is a mechanical progress indicator.
• It can be equipped with additional devices, for example, a potentiometer.
• The permissible ambient temperature is from 0 °C to +50 °C.
• Voltage: 230 V (standard), 24 V (optional), 50 Hz, 1~.
• Drives: 0.85 kN and 1.6 kN.
• The standard equipment is manual control and 2 limit torque switches.
• Non-wearable sensor of the current value.
• Contactless limit switches of an electric motor.
