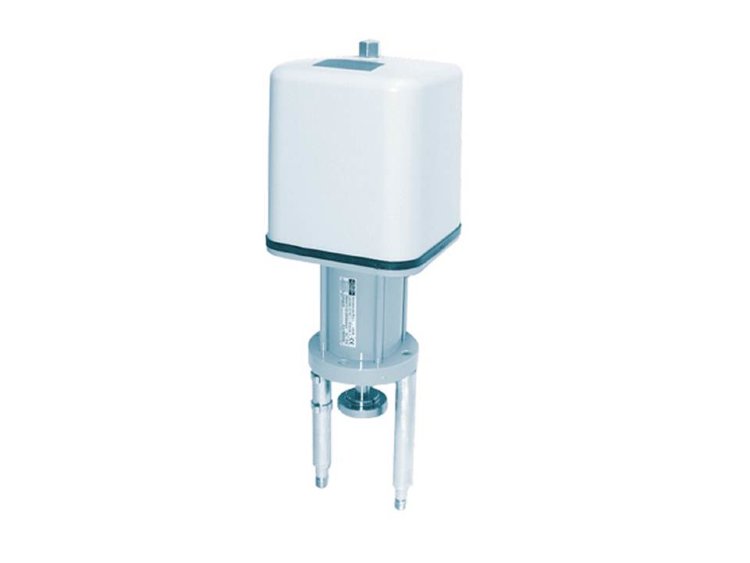

Linear electric FR2.1 0.9kN

Linear electric drive FR2.1 /FR2.2

Technical specifications:

• Voltage - 230V, 50/60Hz 1~
• The permutation force is 0.9 kN
• The response rate is 0.29 mm/sec.
• Stroke - 35 mm
• Temperature (permissible temperature) - 0 °C to50 °C

Areas of application:

industrial installations, production process technologies, construction of installations and equipment, etc.

Features:

• FR is a linear electric drive with a safety function in case of power failure.
• Tested by the TUV/DIN 32730 Technical Supervision Association.
• There are 2 limit switches.
• The permissible operating temperature conditions are from 0 °C to +50 °C.
• Protection class IP 54.
• There is a mechanical progress indicator.
• If necessary, it can be equipped with additional devices, for example, a potentiometer.
• The permutation force is 0.9kN (with a stroke of 35 mm), 2.2kN (with a stroke of 35 mm).
• The electric drive is practical in operation.
