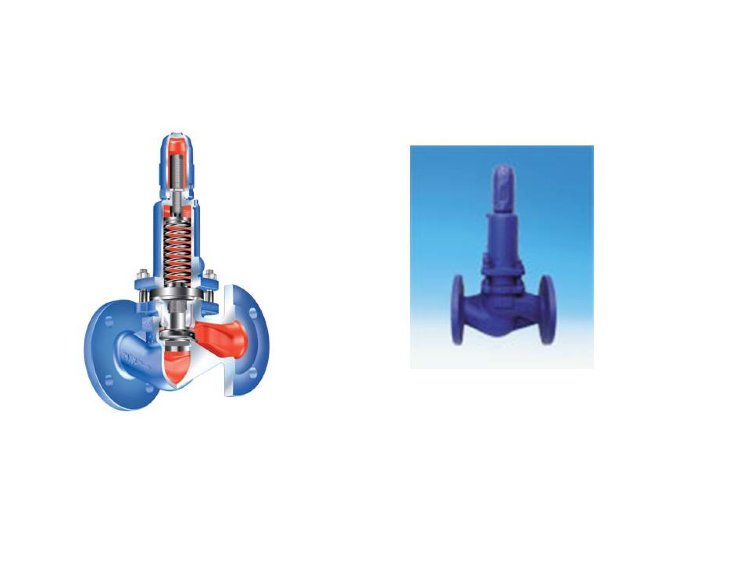

Bypass valve 12.750 ARI-PRESO GG-25 PN16 Tmax=+450oC flange (DN50)

ARI-TAKEN 12.750 Bypass valve PN16 Tmax=+450oC flange



Bypass valves – these are automatic pressure relief devices, powered by static pressure arising in front of the valve and characterized by a gradual rise of the spool in proportion to the increase in pressure above the opening pressure. In the bypass valve, pressure stabilization is achieved due to the design of the shut-off element, which eliminates the dynamic effect of the working medium on the movable part of the shut-off element.



Bypass valves Ari fittings - spring-loaded, flow-through with flanges, DN 15-100, PN 16, material: EN-JL1040, EN-JS1049, 1.0619+N, 1.4408

• Nominal pressure: 16
• Housing material: grey cast iron, ductile iron, cast steel, stainless steel
• Temperature: -60 to +450 C
• Standard Sizes (DN): DN15-DN100
• Connections: flanged

Application:



Working medium: Neutral liquids and water, gaseous substances, steam (including water), etc.



Features: Differential pressure control valve (spring control). ARI-PRESO is intended for use in bypass lines of various sources of consumption. It is also used to prevent evaporation in condensate systems (by pressure control method). There is a pump protection. The body is made of steel and cast iron.

• Material - EN-GJL-250, EN-JL1040
• Connection - flange, shape - through, temperature *housing - -10 °C to 350 °C
• Characteristic -pressure range 0.5-1.5 bar
• Media: liquids, gases, steam, water vapor
• eClass-Nr.: 37011902
