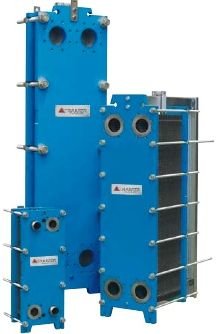

Plate heat exchanger Tranter GD-042P

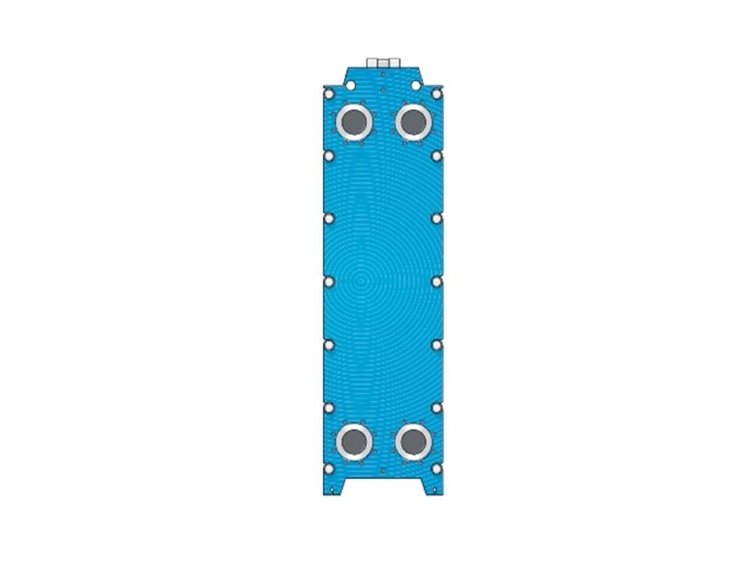

The design of the Tranter GD-042 P heat exchanger is based on a batch assembly of corrugated plates, which provide high-quality heat transfer. The plates are made of Swedish stainless steel and are mounted on the support and guide consoles at an angle of 180 degrees. All plates are sealed around the perimeter. The finished package is clamped with two plates: movable and fixed.

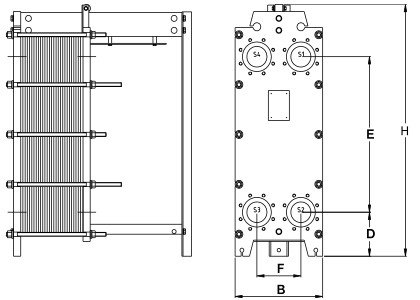

Sizes


• D – 220 mm;
• height H – 1675 mm;
• the diameter of the connection is DN – 100;
• B – 450 mm;
• E – 1189 mm;
• F – 226 mm.

TECHNICAL CHARACTERISTICS OF THE TRANTER GD-042 P HEAT EXCHANGER

• maximum operating temperature 180 °C;
• max
