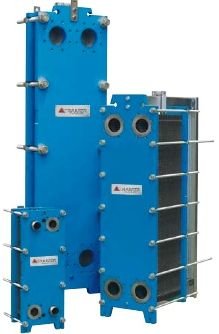

Plate heat exchanger Tranter GL-013N/NI

Plate heat exchanger Tranter GL-013N/NI

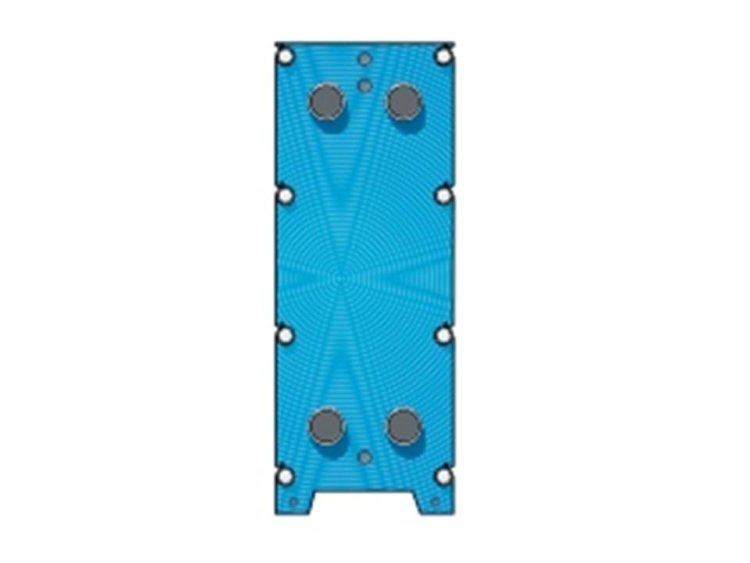

Heat exchanger Tranter GL-013 N/NI – this is a high-quality plate heat exchange equipment. Each plate included in the package is made of high-quality stainless steel supplied from Sweden. These corrugated plates are fixed on two consoles: a carrier and a guide. To ensure greater reliability of the modular design, the plates are clamped with two plates: movable and fixed.

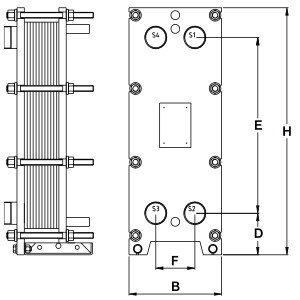

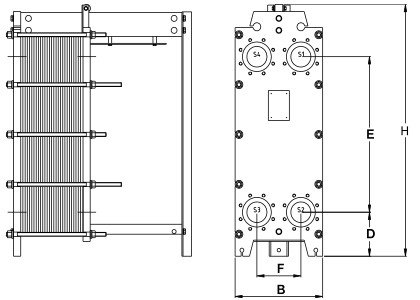

Sizes:

• D – 140 mm;
• height H – 832 mm;
• connection diameter DN – 50/65;
• B – 320 mm;
• E – 592 mm;
• F – 135 mm.

TECHNICAL CHARACTERISTICS OF THE HEAT EXCHANGER TRANTER GL-013 N/NI

• maximum operating temperature 180 °C;
• The maximum working pressure is 10
