Plate heat exchanger Tranter GC-008PI

Plate heat exchanger Tranter GC-008 PI

DESIGN FEATURES

Heat exchanger Tranter GC-008 PI It is equipped with a package of special corrugated heat exchange plates with a perimeter seal. The material of manufacture is Swedish stainless steel. The plates are fixed on the supporting and guide consoles and clamped with two plates: movable and fixed.

The heat exchanger has a high heat transfer coefficient, which is determined by the angle of the swept corrugations on the plates.

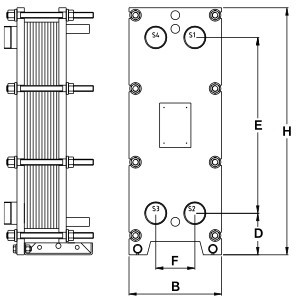

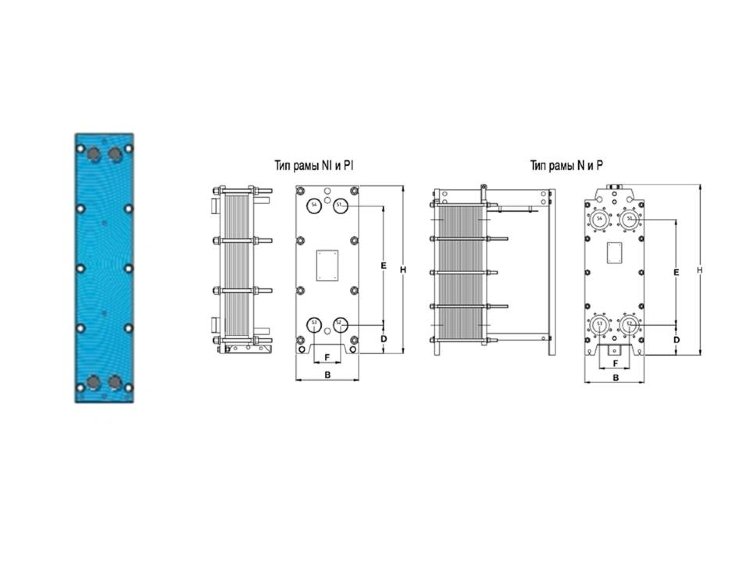

Sizes

• D - 72 mm
• height H - 774 mm
• The diameter of the connection is 25/32 mm
• B - 180 mm
• E - 640 mm
• F - 6
