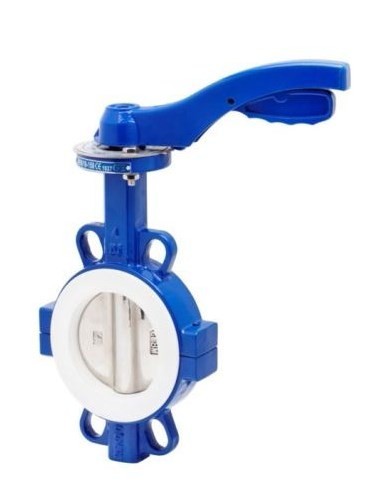

GENEBRE rotary disc shutter, cast iron body GGG40, AISI316 disc, PTFE seal, Tmax=180°C

№

Name

Material

1
2
3
4
5
6
7
8
9
10
11
12
13
14

The lower part of the case
The upper part of the case
Lower stem
Upper stem
Packing
Seal
Disk
Spring
O-ring seal
The retainer
Screw
A pen
Tablet
Bracing

Cast iron GGG-40　
Cast iron GGG-40　
Stainless steel. steel 1.4403
Stainless steel. steel 1.4403
RPTFE
EPDM coated with PTFE
Stainless steel. steel 1.4403
Steel
Viton
Nylon
Steel
Aluminum
Steel
Steel

BASIC PARAMETERS

Model

Size

DN

PN

L

A

B

C

D

E

H

M

Weight (kg)

2101 09
2101 10
2101 11
2101 12
2101 13
2101 14
2101 16

2"
2 1/2"
3"
4"
5"
6"
8"

50
65
80
100
125
150
200

10
10
10
10
10
10
10

43
46
46
52
56
56
60

80
89
95
114
127
139
175

140
150
158
176
190
210
236

119
131
145
180
202
230
295

***
***
***
***
***
150
300

***
***
***
***
***
72
85

65
65
65
78
78
***
***

172
172
172
264
264
***
***

2.9
3.18
3.55
5.53
6.875
8.25
17.4

PRESSURE LOSS DEPENDING ON THE POSITION OF THE DISC

DN

900º

800º

700º

600º

500º

400º

300º

200º

100º

50
65
80
100
125
150
200

125
244
399
727
1190
1600
2868

99
193
315
606
991
1334
2458

73
141
231
429
670
887
1610

53
93
133
237
370
490
935

37
58
83
148
232
306
588

23
37
53
94
147
195
364

14
21
30
54
85
112
208

6
10
13
23
37
48
88

1
1
2
3
4
5
10
