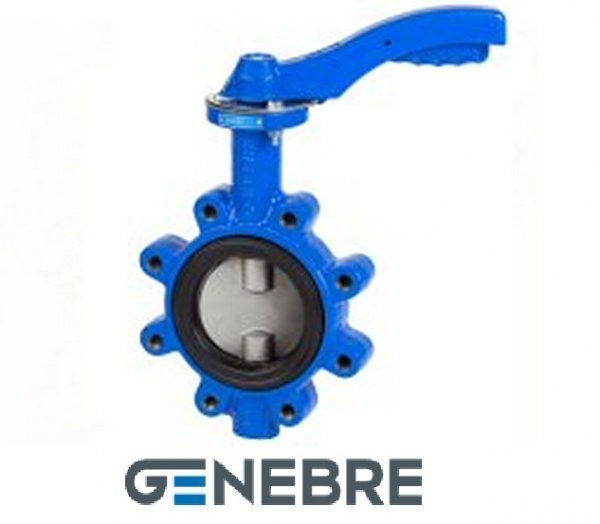

Disc shutter type Lug Genebre PN16, GGG40/1.4408/EPDM, handle, connection according to ANSI125/150

2108 Valve disc flanged type Lug Genebre GGG40/AIAI316/EPDM Tmax=+120oC handle

The GENEBRE 2108 disk flanged rotary gate is designed to regulate the intensity of the flow of liquid medium through the pipeline with the possibility of completely blocking it. Changing the position of the disc around its axis sets the degree of lumen of the pipe.

The GENEBRE 2108 disk flanged rotary gate is designed to regulate the intensity of the flow of liquid medium through the pipeline with the possibility of completely blocking it. Changing the position of the disc around its axis sets the degree of lumen of the pipe. It is used in water supply, heating systems and the food industry. A rotary shutter of the LUG type.

• the body material is cast iron with epoxy coating;
• The material of the rotary disc is stainless steel;
• seal material – EPDN (vulcanized ethylene propylene diene rubber);
• guaranteed tightness;
• flange diameter – from 50 to 300 mm;
• the maximum permissible nominal pressure is 10 atm (diameter from 200 to 300 mm);
• the maximum permissible nominal pressure is 16 atm (diameter from 50 to 150 mm);
• the temperature range of the conducted medium is from minus 20 to plus 120 degrees Celsius;
• easy to repair (does not require special equipment and maintenance);
• the possibility of installing a gearbox, pneumatic and electric drive with a flange diameter of 300 mm;
• possible conducting medium – carbon mixtures, glycols, oil, drinking, industrial and salt water without mechanical impurities (chemically non-aggressive substances);
• the manufacturer is GENEBRE (Spain).
