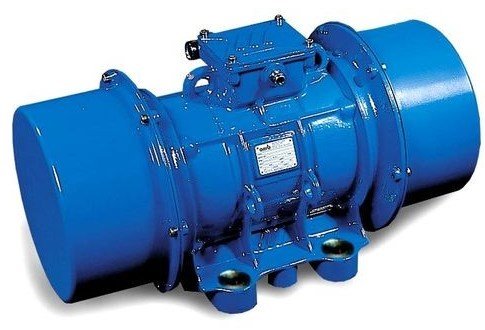

Vibration motor pad BM15-0200

BM15-0200 Pad electric vibrator

Vibration motors of the BM series in the "on paws" version provide solutions for most tasks in the industry where vibration equipment is used.

•  Vibration amplitude adjustment from 0 to 100% by changing the balance imbalance;
•  Operating temperature range from -20 to + 40 degrees C;
•  Degree of protection IP65-7;

BM series: three-phase on-site electric vibration motors for general industrial use, version "on paws".

• Industrial vibration motors of the BM series are the ideal solution for most tasks in the industry where vibration equipment is used.
• Power: from 0.075 to 18.7 kW
• Degree of protection: IP65-7
• Vibration amplitude adjustment: from 0 to 100% (by changing the balance imbalance)
• Rotor shaft: NiCrMo (hardened steel)
• Body: made of cast iron (starting from size 03) and aluminum (sizes 01 and 02).
• Painting: according to RAL 5010.

High-quality bearings, special lubricants with extended service life, as well as labyrinth seals ensure long-term operation of the vibration motor with minimal maintenance.

The ability to work together with a frequency converter.

Industrial vibrators of the BM series from OMB are three-phase electric motors with installed eccentric weights at both ends of the shaft, due to the rotation of which circular vibrations are created. The intensity of the impact is adjusted from zero to the maximum level by changing the weight ratio, the model range consists of 2-, 4-, 6-, 8- and 10-pole versions of the execution. They are suitable for continuous operation with full efficiency, for operation as part of a frequency-controlled drive.

Vibration motors of this series are reliably protected from splashes and dust entering the machine. The structure has high mechanical strength, the body is made of cast iron or aluminum (for small sizes), reinforced support units, a hardened shaft made of NiCrMo alloy steel. PTC type thermistors are built-in to protect against overheating. On request, the equipment can be changed and supplemented with stainless steel covers, anti-condensation heating elements, and a special mounting design.

The entire range can be modified into the BM-A version for use in explosive atmospheres according to Atex for zones 2 (gas) or 22 (dust).

TECHNICAL CHARACTERISTICS OF OMB BM SERIES PAD VIBRATORS

• Centrifugal (driving) force: 140 - 225840 N;
• Static moment: 6.57 - 29115 kgmm;
• Power consumption: 0.075 - 18.7 kW;
• Rated current: 0.16 - 30.1 A;
• Supply voltage: 220 - 230 /380 - 400 /660 - 690 B (other values on request);
• Rotation speed: 600 /750 /1000 /1500 /3000 rpm;
• The degree of protection of the case: IP65, IP66, IP67;
• Insulation class: F (on request H);
• Operating temperature range: -20 … +40 °C.

STANDARD SIZES OF OMB SERIES BM MOTOR VIBRATORS (2-POLE VERSION, 3000 RPM)
