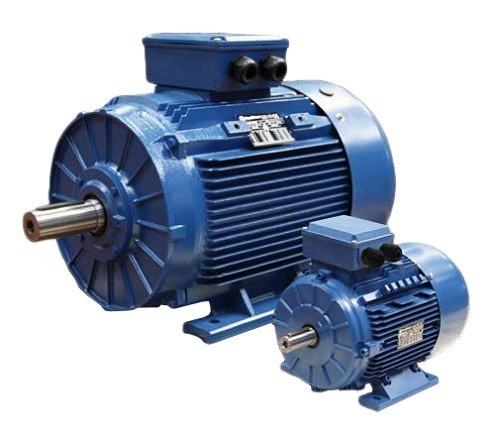

Asynchronous three-phase electric motors MARELLI MOTORI MAQ, BAQ they belong to the range of energy-efficient models of the class IE2 (high) according to the European standard IEC 60034-30, according to the conducted research and measurements according to GOST IEC 60034-2-1.
The engines of this series have power up to 90 kW, low-voltage, the number of poles is 2, 4 or 6. Construction materials used: the frame and end shields of the housing are made of aluminum (thickness up to 132 mm) or cast iron (thickness up to 160 mm); the fan casing is steel, the blades are plastic; the rotary (180) terminal box is made of aluminum or cast iron.
The engine has a high level of housing protection, is able to withstand short-term overloads in continuous operation.
Technical parameters of MARELLI MOTORI electric motors of the MAQ and BAQ series:
- Type of housing construction: cast iron /aluminum;
- Rated power: 0.75 - 90 kW;
- Operating speed range: 1000 /1500 /3000 rpm;
- Operating voltage range: up to 1000 V;
- Overall height: 80 – 280 mm;
- Mounting design: IN 1001, IN 3001, IN 3011, IN 2001, IN 3601;
- Degree of protection housing: IP55;
- Insulation class: F;
Standard sizes
MAQ 80 MA2, MAQ 80 MB2, MAQ 90 S2, MAQ 90 L2, MAQ 100 LA2, MAQ 112 M2, MAQ 132 SA2, MAQ 132 SB2;
BAQ 160 MA2, BAQ 160 MB2, BAQ 160 L2, BAQ 180 M2, BAQ 200 LA2, BAQ 200 LB2, BAQ 225 M2, BAQ 250 M2, BAQ 280 S2, BAQ 280 M2.
Version 1500 rpm:
MAQ 80 MB4, MAQ 90 S4, MAQ 90 L4, MAQ 100 LA4, MAQ 100 LB4, MAQ 112 M4, MAQ 132 SA4, MAQ 132 MA4;
BAQ 160 M4, BAQ 160 L4, BAQ 180 M4, BAQ 180 L4, BAQ 200 L4, BAQ 225 S4, BAQ 225 M4, BAQ 250 M4, BAQ 280 S4, BAQ 280 M4.
1000 rpm version:
MAQ 90 S6, MAQ 90 L6, MAQ 100 LA6, MAQ 112 M6, MAQ 132 SA6, MAQ 132 MA6, MAQ 132 MB6;
BAQ 160 M6, BAQ 160 L6, BAQ 180 L6, BAQ 200 LA6, BAQ 200 LB6, BAQ 225 M6, BAQ 250 M6, BAQ 280 S6, BAQ 280 M6.
