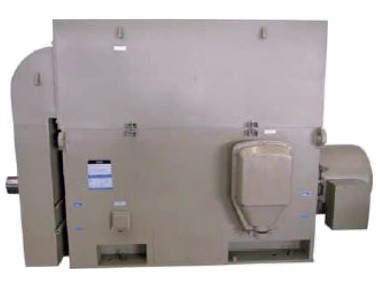

Asynchronous motors SimoTop series RKK with a phase rotor, they cover a wide range of high and ultra-high power, two types of supply voltage ratings, closed architecture. The work efficiency reaches efficiency indicators of 91-95%, power coefficients in the range of 0.7 - 0.9. The comfort of use is ensured by low noise and vibration levels. Cooling is carried out by the operation of impellers mounted on the shaft through a built-in heat exchanger.
This series is designed for use in continuous load mode (S1). Horizontal orientation with installation on paws. To make changes to the standard design of the motor, it is necessary to send a request for preliminary approval.
Technical characteristics of SimoTop RKK series high voltage motors:
- Rated power: 160 - 2000 kW;
- Operating voltage range: 6000 V, 10000 V (50 Hz);
- Operating speed range: 500 - 1500 rpm;
- Overall height: 355 - 630 mm;
- Mounting design: IN THE B3;
- The degree of protection of the case: IP44, IP54;
- Cooling system: IC611.
Standard sizes of SimoTop RKK series electric motors
The supply voltage is 6000 V
1500 rpm version (4-pole): RKK3552-4, RKK3553-4, RKK3554-4, RKK4001-4, RKK4002-4, RKK4003-4, RKK4004-4, RKK4005-4, RKK4501-4, RKK4502-4, RKK4503-4, RKK4504-4, RKK4504-4, RKK5001-4, RKK5002-4, RKK5003-4, RKK5004-4, RKK5601-4, RKK5602-4, RKK5603-4, RKK6301-4, RKK6301-4, RKK6302-4, RKK6303-4
1000 rpm version (6-pole): RKK4001-6, RKK4002-6, RKK4003-6, RKK4004-6, RKK4005-6, RKK4501-6, RKK4502-6, RKK4503-6, RKK4504-6, RKK5001-6, RKK5002-6, RKK5003-6, RKK5004-6, RKK5004-6, RKK5602-6, RKK5603-6, RKK5604-6, RKK6301-6, RKK6302-6, RKK6303-6
750 rpm version (8-pole): RKK4004-8, RKK4005-8, RKK4501-8, RKK4502-8, RKK4503-8, RKK4504-8, RKK5001-8, RKK5002-8, RKK5003-8, RKK5004-8, RKK5601-8, RKK5602-8, RKK5603-8, RKK5604-8, RKK6301-8, RKK6302-8, RKK6303-8, RKK6304-8
600 rpm version (10-pole): RKK4501-10, RKK4502-10, RKK4503-10, RKK4504-10, RKK4505-10, RKK5001-10, RKK5002-10, RKK5003-10, RKK5004-10, RKK5601-10, RKK5602-10, RKK5603-10, RKK5604-10, RKK6301-10, RKK6302-10, RKK6303-10, RKK6304-10
500 rpm version (12-pole): RKK4503-12, RKK4504-12, RKK 5001-12, RKK 5002-12, RKK 5003-12, RKK 5004-12, RKK5602-12, RKK5603-12, RKK5604-12, RKK6301-12, RKK6302-12, RKK6303-12, RKK6304-12
power supply voltage 10000 V
1500 rpm version (4-pole): RKK4001-4, RKK4002-4, RKK4003-4, RKK4004-4, RKK4500-4, RKK4501-4, RKK4502-4, RKK4503-4, RKK4504-4, RKK4505-4, RKK4506-4, RKK5001-4, RKK5002-4, RKK5003-4, RKK5004-4, RKK5005-4, RKK5601-4, RKK5602-4, RKK5603-4, RKK6301-4, RKK6302-4, RKK6303-4
1000 rpm version (6-pole): RKK4001-6, RKK4002-6, RKK4003-6, RKK4502-6, RKK4503-6, RKK4504-6, RKK5001-6, RKK5002-6, RKK5003-6, RKK5004-6, RKK5601-6, RKK5602-6, RKK5603-6, RKK5604-6, RKK6301-6, RKK6302-6, RKK6303-6
750 rpm version (8-pole): RKK500-8C, RKK500-8B, RKK500-8A, RKK5001-8, RKK5002-8, RKK5003-8, RKK5004-8, RKK5005-8, RKK5006-8, RKK5601-S, RKK5602-8, RKK5603-8, RKK5604-8, RKK6301-8, RKK6302-8, RKK6303-8
600 rpm version (10-pole): RKK5001-10, RKK5002-10, RKK5003-10, RKK5004-10, RKK5005-10, RKK5006-10, RKK5007-10, RKK5601-10, RKK5602-10, RKK5603-10, RKK 5604-10, RKK6301-10, RKK6302-10, RKK6303-10, RKK6304-10
500 rpm version (12-pole): RKK5601-12, RKK5602-12, RKK5603-12, RKK5604-12, RKK5605-12, RKK6301-12, RKK6302-12, RKK6303-12, RKK6304-12
