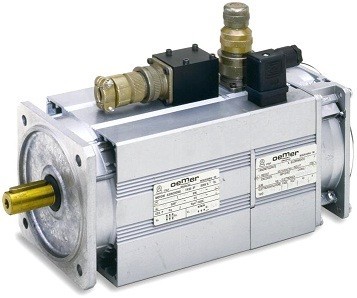

Asynchronous servo motors Oemer Motori QCAVS/QCAVP

The three-phase asynchronous servo motors of the QCAVC-, QCAVP-SINCROVERT series are developed by Oemer Motori for use as part of high-speed positioning and displacement systems, the high-strength design and electromagnetic system allows you to reach speeds up to 12,000 rpm. This circumstance makes servomotors an ideal solution for use in cutting equipment, conveyor lines, and printing machines. The lightweight design of the servo motor allows it to be placed directly on the drive mechanism as part of a movable towed chain.
A specially designed electromagnetic system and the geometry of the magnetic lamellae/plates of the stator and rotor ensure high performance, low moment of inertia, high overload characteristics, instantaneous response of the electric motor to control actions without moment fluctuations.

Parameters of asynchronous electric motors Oemer Motori series QCAVS, QCAVP-SINCROVERT
Rated power: 0.2 – 6.3 kW;
Overall height: 63, 71, 80, 90, 100, 112 mm;
Rated torque: 0.9 – 17 Nm;
Rated speed : 1500/2000 /3000 /4000 /5000 rpm;
Maximum speed: up to 12000 rpm;
Control type: as part of a frequency-controlled electric drive.
Degree of protection: IP54, IP55;
Cooling method:
Execution of QCAVP and QCAVS 63SA..71A - IC410 (self-cooling);
QCAVS 71B..90L - IC 416 (forced axial cooling),
Insulation class: F;
Типоразмеры: QcaVs 63SA, QcaVs 63SB, QcaVs 63M, QcaVs 71A, QcaVs 71B, QcaVs 80S, QcaVs 80M, QcaVs 90MA, QcaVs 90MB, QcaVs 90L, QcaVp 71A, QcaVp 80B, QcaVp 100M, QcaVp 112s, qcavp 112m;
Installed options: feedback sensors (encoders, resolvers), temperature sensors (PTO, PTC, PT100, KTY84), lubrication of bearings, reinforced bearings, size adaptation of connecting flanges and paws, parking electromagnetic brakes, enhanced radial cooling ventilation…

Features and advantages of Oemer Motori engines of the QCAVS, QCAVP -SINCROVERT series
- high dynamic performance up to 12,000 rpm;
- a wide range of servomotors in stock;
- high overload characteristics;
- low moment of inertia,
- weight and dimensions;
- wide range of options

Applications of Oemer Motori electric motors of the QCAVS, QCAVP-SINCROVERT series: food, pharmaceutical, glass, metalworking, textile, tobacco, tire, chemical, plywood, industry.

Specialized solutions based on Oemer Motori engines for use in
- glass production equipment (grinding machines, edging machines, transport conveyors);
- metalworking and woodworking machines;
- weaving, spinning and sewing machines in the textile industry;
- manipulators, robots and automated lines;
- conveyors for transporting materials;
- metering screw devices and pumps;
- filling and packaging equipment;
- winding and unwinding machines;
- cargo lifting and storage systems;
- printing presses and machines.

For the selection of asynchronous servo motors Oemer Motori series QCAVS, QCAVP-SINCROVERT, please contact our engineers by phone.saluteh.
