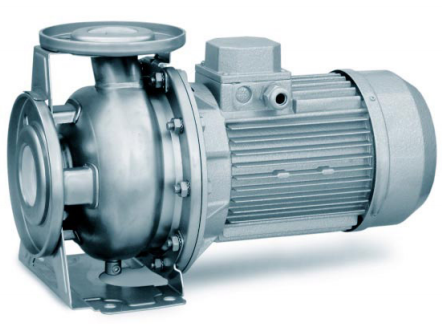

Single-stage centrifugal pumps with high torque series CBF /CBFL from the company EDUR They are designed for pumping liquids including contaminants (solid particles, fibers) of various nature in a percentage ratio of no more than 15% of the total volume passing through the gate, as well as with a moderate concentration of gas impurities. Inclusions may have abrasive properties, such as metal chips, lime, oils with solid elements, etc. They are not susceptible to cavitation processes. Single channel, practical and compact block design. The suction nozzle is located coaxially to the motor unit, falling radially upwards.
CBF pumps are very reliable and easy to maintain, shaft sealing with a mechanical seal (single or double-sided in the CBFL version), optional extensions are also available. Three-phase AC electric motors with a high class of protection against dust and moisture are used as standard for the drive.
Pumping liquids: waste water, refrigerants, abrasive oils, etc.
Limitations: contact with chemically aggressive agents.
Areas of application: water purification, processing plants, processing industry, environmental engineering and other technological processes and industries.
Technical characteristics of EDUR centrifugal pumps of CBF/CBFL series
- Volume consumption: up to 60 m3/hour;
- Discharge height: up to 45 m;
- Nominal pressure (PN): up to 10 bar;
- Diameter of the suction pipe: 50 - 65 mm;
- Diameter of the pressure nozzle: 32 - 50 mm;
- Viscosity of the liquid: up to 80 mm2/sec;
- Maximum sizes of inclusions: 20 - 40 mm;
- Liquid temperature: -20 to 110 °C.
- Installation: horizontal /vertical.
Overall standard sizes of EDUR pumps of the CBF /CBFL series
CBF 32-160, CBF 50-125, CBL 50-160/157, CBL 50-160/166, CBL 50-200/191
