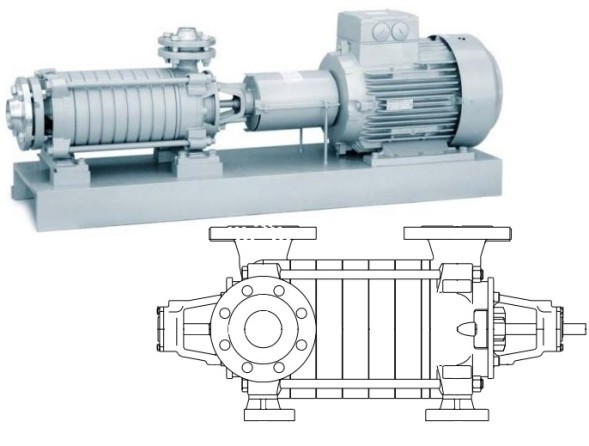

Multistage high pressure centrifugal pumps of the series ZU /ZT /ZP productions EDUR They are designed for pumping liquids in various industry directions, including slightly polluted streams. One or two channels, the suction nozzle is located coaxially to the motor unit, falling radially upwards, and their parallel positioning is also available. Horizontal orientation of the installation, three-phase alternating current electric motors with a high class of protection against dust and moisture are used as a drive in the standard version, individual settings are available on request.
Various materials and their combinations for component parts (housing, impeller) are available to choose from: cast iron, bronze, stainless steel. The shaft is made of various grades of stainless steel, sealed with a mechanical seal (ZU), an oil seal (ZT /ZP). The NHM series is additionally equipped with a magnetic coupling that reliably separates the two functional units. The pumps of the ZT line have a built-in water cooling system.
Pumping liquids: water, solutions, oils, etc.
Limitations: absence of abrasive inclusions, contact with chemically aggressive agents.
Areas of application: water purification, irrigation, boiler power, cooling systems, washing plants, filtration, marine applications and other technological processes and industries.
Technical characteristics of EDUR centrifugal pumps of the ZU /ZT /ZP series
- Volume consumption: up to 64 m3/hour;
- Discharge height: up to 350 m;
- Nominal pressure (PN): up to 30 bar (ZU up to 25 bar);
- Diameter of the suction pipe: 65 - 80 mm;
- Diameter of the pressure nozzle: 40 - 65 mm;
- Viscosity of the liquid: up to 115 mm2/sec;
- Liquid temperature: from -40 to 140 °C (IN), up to 160 °C (ZT), up to 110 °C (ZP).
- Installation: horizontal, on the base plate.
Overall standard sizes of EDUR pumps of the ZU /ZT /ZP series
TO 401 A142L, TO 402 A142L, TO 403 A142L, TO 404 A142L, TO 405 A142L, TO 401 B150L, TO 402 B150L, TO 403 B150L, TO 404 B150L, TO 405 B150L, TO 406 B150L, TO 406 B150L, TO 401 C120L, TO 402 C120L, TO 403 C120L, TO 404 C120L, TO 405 C120L, TO 406 C120L, TO 601 C160L, TO 603 C160L, TO 604 C160L, TO 601 D150L, TO 602 D150L, TO 603 D150L, TO 603 D150L, 604 D150L, 601 D160L, 602 D160L, 603 D160L, 604 D160L, 601 E150L, 602 E150L, 603 E150L, 604 E150L, 601 E162L, 602 E162L, 603 E162L, 604 E162L, 604 E162L, TO 601 F170L, TO 602 F170L, TO 603 F170L
ZT 401 A142L, ZT 402 A142L, ZT 403 A142L, ZT 404 A142L, ZT 405 A142L, ZT 406 A142L, ZT 401 B150L, ZT 402 B150L, ZT 403 B150L, ZT 404 B150L, ZT 405 B150L, ZT 406 B150L, ZT 401 C120L, ZT 402 C120L, ZT 403 C120L, ZT 404 C120L, ZT 405 C120L, ZT 406 C120L, ZT 601 C160L, ZT 602 C160L, ZT 603 C160L, ZT 604 C160L, ZT 601 D150L, ZT 602 D150L, ZT 603 D150L, ZT 604 D150L, ZT 601 D160L, ZT 602 D160L, ZT 603 D160L, ZT 604 D160L, ZT 601 E150L, ZT 602 E150L, ZT 603 E150L, ZT 604 E150L, ZT 601 E162L, ZT 602 E162L, ZT 603 E162L, ZT 604 E162L, ZT 601 F170L, ZT 602 F170L, ZT 603 F170L
