Pump MV 80, PVDF, VITON, B

Centrifugal horizontal pump MV 80, PVDF, VITON, B

MB 80 Chemical Centrifugal Pump

• Capacity – up to 6 m3/h
• The diameter of the solid particles is up to 5 mm.
• Versions: PP – PVDF

The main features of the MB 80 centrifugal pump

•  the capacity of the centrifugal pump is up to 6 m3/h
•  without welded joints;
•  pumping liquids containing solid and insoluble particles up to 5 mm in size.
•  pumping of viscous liquids up to 500 Sdr
•  mechanical cuff or bellows seals;
•  use with particularly contaminated liquids (TS seal);
•  ease of maintenance and replacement of components
•  low cost of spare parts

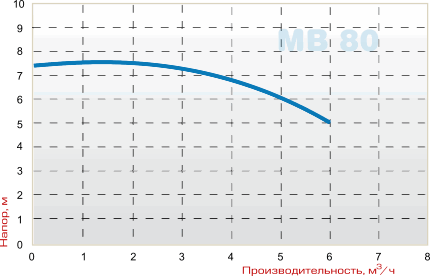

  Technical characteristics of the pump

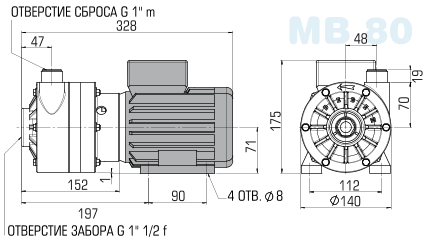

• Connection of the fence G 1 1/2” f
• Reset connection G 1” m
• Max. capacity 6 m3/h
• Max. head* 7.2 m.
• TL - TS seals
• Power
